Page 129 - Carbide drills I Thread cutting tools 2023
P. 129

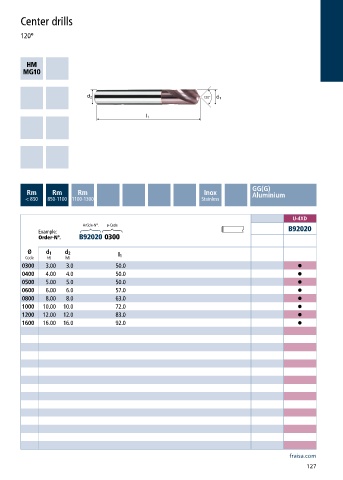

Center drills
120°
GG(G)
Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 Stainless
U-4XD
Article-N°. ø-Code
Example: B92020
Order-N°. B92020 0300
Ø d 1 d 2
Code h6 h6 l 1
0300 3.00 3.0 50.0 •
0400 4.00 4.0 50.0 •
0500 5.00 5.0 50.0 •
0600 6.00 6.0 57.0 •
0800 8.00 8.0 63.0 •
1000 10.00 10.0 72.0 •
1200 12.00 12.0 83.0 •
1600 16.00 16.0 92.0 •
fraisa.com
127
