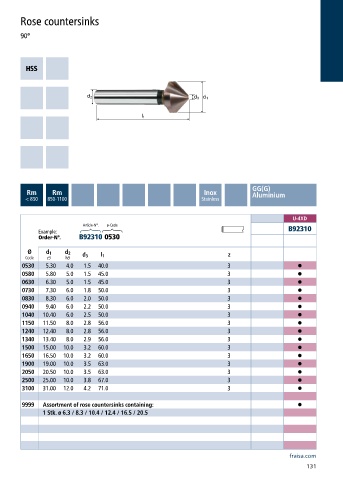

Rose countersinks

90°

GG(G)
Rm Rm Inox Aluminium
< 850 850-1100 Stainless

U-4XD
Article-N°. ø-Code
Example: B92310
Order-N°. B92310 0530
Ø d 1 d 2
Code z9 h9 d 3 l 1 z
0530 5.30 4.0 1.5 40.0 3 •
0580 5.80 5.0 1.5 45.0 3 •
0630 6.30 5.0 1.5 45.0 3 •
0730 7.30 6.0 1.8 50.0 3 •
0830 8.30 6.0 2.0 50.0 3 •
0940 9.40 6.0 2.2 50.0 3 •
1040 10.40 6.0 2.5 50.0 3 •
1150 11.50 8.0 2.8 56.0 3 •
1240 12.40 8.0 2.8 56.0 3 •
1340 13.40 8.0 2.9 56.0 3 •
1500 15.00 10.0 3.2 60.0 3 •
1650 16.50 10.0 3.2 60.0 3 •
1900 19.00 10.0 3.5 63.0 3 •
2050 20.50 10.0 3.5 63.0 3 •
2500 25.00 10.0 3.8 67.0 3 •
3100 31.00 12.0 4.2 71.0 3 •

9999 Assortment of rose countersinks containing: •
1 Stk. ø 6.3 / 8.3 / 10.4 / 12.4 / 16.5 / 20.5
