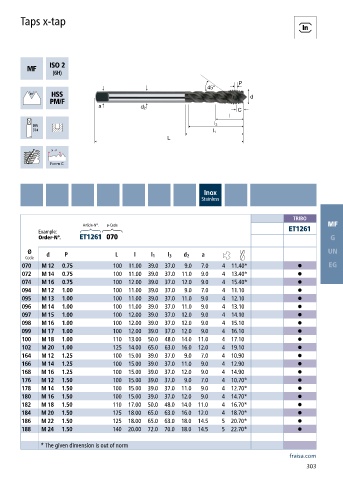

Page 305 - Carbide drills I Thread cutting tools 2023

Taps x-tap

Inox
Stainless

TRIBO
Article-N°. ø-Code MF
Example: ET1261
Order-N°. ET1261 070 G
Ø UN
Code d P L l l 1 l 3 d 2 a
070 M 12 0.75 100 11.00 39.0 37.0 9.0 7.0 4 11.40* • EG
072 M 14 0.75 100 11.00 39.0 37.0 11.0 9.0 4 13.40* •
074 M 16 0.75 100 12.00 39.0 37.0 12.0 9.0 4 15.40* •
094 M 12 1.00 100 11.00 39.0 37.0 9.0 7.0 4 11.10 •
095 M 13 1.00 100 11.00 39.0 37.0 11.0 9.0 4 12.10 •
096 M 14 1.00 100 11.00 39.0 37.0 11.0 9.0 4 13.10 •
097 M 15 1.00 100 12.00 39.0 37.0 12.0 9.0 4 14.10 •
098 M 16 1.00 100 12.00 39.0 37.0 12.0 9.0 4 15.10 •
099 M 17 1.00 100 12.00 39.0 37.0 12.0 9.0 4 16.10 •
100 M 18 1.00 110 13.00 50.0 48.0 14.0 11.0 4 17.10 •
102 M 20 1.00 125 14.00 65.0 63.0 16.0 12.0 4 19.10 •
164 M 12 1.25 100 15.00 39.0 37.0 9.0 7.0 4 10.90 •
166 M 14 1.25 100 15.00 39.0 37.0 11.0 9.0 4 12.90 •
168 M 16 1.25 100 15.00 39.0 37.0 12.0 9.0 4 14.90 •
176 M 12 1.50 100 15.00 39.0 37.0 9.0 7.0 4 10.70* •
178 M 14 1.50 100 15.00 39.0 37.0 11.0 9.0 4 12.70* •
180 M 16 1.50 100 15.00 39.0 37.0 12.0 9.0 4 14.70* •
182 M 18 1.50 110 17.00 50.0 48.0 14.0 11.0 4 16.70* •
184 M 20 1.50 125 18.00 65.0 63.0 16.0 12.0 4 18.70* •
186 M 22 1.50 125 18.00 65.0 63.0 18.0 14.5 5 20.70* •
188 M 24 1.50 140 20.00 72.0 70.0 18.0 14.5 5 22.70* •

* The given dimension is out of norm
fraisa.com
303
