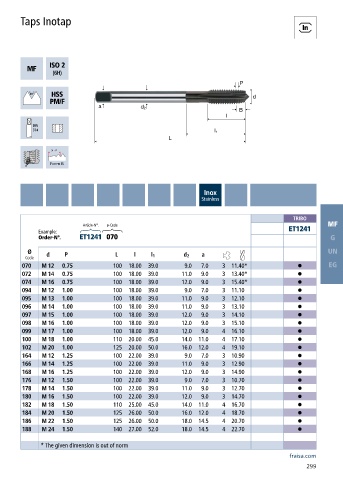

Page 301 - Carbide drills I Thread cutting tools 2023

Taps Inotap

Inox
Stainless

TRIBO
Article-N°. ø-Code MF
Example: ET1241
Order-N°. ET1241 070 G
Ø UN
Code d P L l l 1 d 2 a
070 M 12 0.75 100 18.00 39.0 9.0 7.0 3 11.40* • EG
072 M 14 0.75 100 18.00 39.0 11.0 9.0 3 13.40* •
074 M 16 0.75 100 18.00 39.0 12.0 9.0 3 15.40* •
094 M 12 1.00 100 18.00 39.0 9.0 7.0 3 11.10 •
095 M 13 1.00 100 18.00 39.0 11.0 9.0 3 12.10 •
096 M 14 1.00 100 18.00 39.0 11.0 9.0 3 13.10 •
097 M 15 1.00 100 18.00 39.0 12.0 9.0 3 14.10 •
098 M 16 1.00 100 18.00 39.0 12.0 9.0 3 15.10 •
099 M 17 1.00 100 18.00 39.0 12.0 9.0 4 16.10 •
100 M 18 1.00 110 20.00 45.0 14.0 11.0 4 17.10 •
102 M 20 1.00 125 20.00 50.0 16.0 12.0 4 19.10 •
164 M 12 1.25 100 22.00 39.0 9.0 7.0 3 10.90 •
166 M 14 1.25 100 22.00 39.0 11.0 9.0 3 12.90 •
168 M 16 1.25 100 22.00 39.0 12.0 9.0 3 14.90 •
176 M 12 1.50 100 22.00 39.0 9.0 7.0 3 10.70 •
178 M 14 1.50 100 22.00 39.0 11.0 9.0 3 12.70 •
180 M 16 1.50 100 22.00 39.0 12.0 9.0 3 14.70 •
182 M 18 1.50 110 25.00 45.0 14.0 11.0 4 16.70 •
184 M 20 1.50 125 26.00 50.0 16.0 12.0 4 18.70 •
186 M 22 1.50 125 26.00 50.0 18.0 14.5 4 20.70 •
188 M 24 1.50 140 27.00 52.0 18.0 14.5 4 22.70 •

* The given dimension is out of norm
fraisa.com
299
