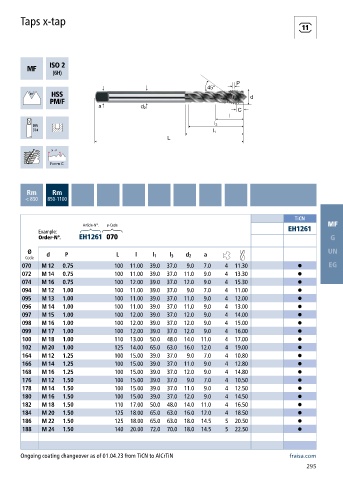

Page 297 - Carbide drills I Thread cutting tools 2023

Taps x-tap

Rm Rm
< 850 850-1100

TiCN
Article-N°. ø-Code MF
Example: EH1261
Order-N°. EH1261 070 G
Ø UN
Code d P L l l 1 l 3 d 2 a
070 M 12 0.75 100 11.00 39.0 37.0 9.0 7.0 4 11.30 • EG
072 M 14 0.75 100 11.00 39.0 37.0 11.0 9.0 4 13.30 •
074 M 16 0.75 100 12.00 39.0 37.0 12.0 9.0 4 15.30 •
094 M 12 1.00 100 11.00 39.0 37.0 9.0 7.0 4 11.00 •
095 M 13 1.00 100 11.00 39.0 37.0 11.0 9.0 4 12.00 •
096 M 14 1.00 100 11.00 39.0 37.0 11.0 9.0 4 13.00 •
097 M 15 1.00 100 12.00 39.0 37.0 12.0 9.0 4 14.00 •
098 M 16 1.00 100 12.00 39.0 37.0 12.0 9.0 4 15.00 •
099 M 17 1.00 100 12.00 39.0 37.0 12.0 9.0 4 16.00 •
100 M 18 1.00 110 13.00 50.0 48.0 14.0 11.0 4 17.00 •
102 M 20 1.00 125 14.00 65.0 63.0 16.0 12.0 4 19.00 •
164 M 12 1.25 100 15.00 39.0 37.0 9.0 7.0 4 10.80 •
166 M 14 1.25 100 15.00 39.0 37.0 11.0 9.0 4 12.80 •
168 M 16 1.25 100 15.00 39.0 37.0 12.0 9.0 4 14.80 •
176 M 12 1.50 100 15.00 39.0 37.0 9.0 7.0 4 10.50 •
178 M 14 1.50 100 15.00 39.0 37.0 11.0 9.0 4 12.50 •
180 M 16 1.50 100 15.00 39.0 37.0 12.0 9.0 4 14.50 •
182 M 18 1.50 110 17.00 50.0 48.0 14.0 11.0 4 16.50 •
184 M 20 1.50 125 18.00 65.0 63.0 16.0 12.0 4 18.50 •
186 M 22 1.50 125 18.00 65.0 63.0 18.0 14.5 5 20.50 •
188 M 24 1.50 140 20.00 72.0 70.0 18.0 14.5 5 22.50 •

Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
