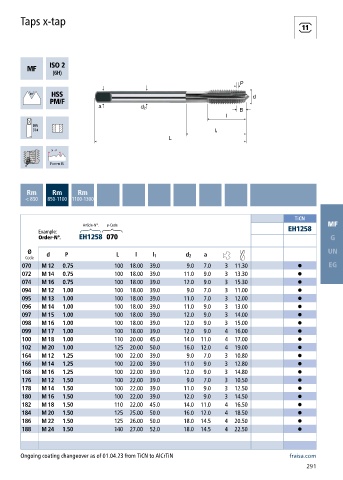

Page 293 - Carbide drills I Thread cutting tools 2023

Taps x-tap

Rm Rm Rm
< 850 850-1100 1100-1300

TiCN
Article-N°. ø-Code MF
Example: EH1258
Order-N°. EH1258 070 G
Ø UN
Code d P L l l 1 d 2 a
070 M 12 0.75 100 18.00 39.0 9.0 7.0 3 11.30 • EG
072 M 14 0.75 100 18.00 39.0 11.0 9.0 3 13.30 •
074 M 16 0.75 100 18.00 39.0 12.0 9.0 3 15.30 •
094 M 12 1.00 100 18.00 39.0 9.0 7.0 3 11.00 •
095 M 13 1.00 100 18.00 39.0 11.0 7.0 3 12.00 •
096 M 14 1.00 100 18.00 39.0 11.0 9.0 3 13.00 •
097 M 15 1.00 100 18.00 39.0 12.0 9.0 3 14.00 •
098 M 16 1.00 100 18.00 39.0 12.0 9.0 3 15.00 •
099 M 17 1.00 100 18.00 39.0 12.0 9.0 4 16.00 •
100 M 18 1.00 110 20.00 45.0 14.0 11.0 4 17.00 •
102 M 20 1.00 125 20.00 50.0 16.0 12.0 4 19.00 •
164 M 12 1.25 100 22.00 39.0 9.0 7.0 3 10.80 •
166 M 14 1.25 100 22.00 39.0 11.0 9.0 3 12.80 •
168 M 16 1.25 100 22.00 39.0 12.0 9.0 3 14.80 •
176 M 12 1.50 100 22.00 39.0 9.0 7.0 3 10.50 •
178 M 14 1.50 100 22.00 39.0 11.0 9.0 3 12.50 •
180 M 16 1.50 100 22.00 39.0 12.0 9.0 3 14.50 •
182 M 18 1.50 110 22.00 45.0 14.0 11.0 4 16.50 •
184 M 20 1.50 125 25.00 50.0 16.0 12.0 4 18.50 •
186 M 22 1.50 125 26.00 50.0 18.0 14.5 4 20.50 •
188 M 24 1.50 140 27.00 52.0 18.0 14.5 4 22.50 •

Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
291
