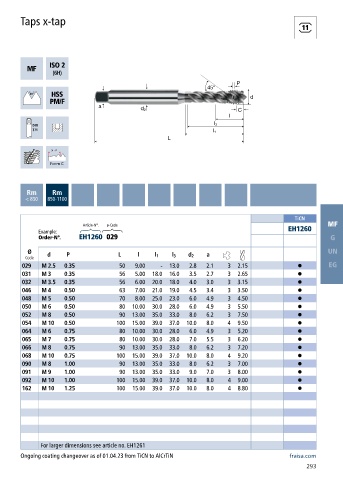

Page 295 - Carbide drills I Thread cutting tools 2023

Taps x-tap

Rm Rm
< 850 850-1100

TiCN
Article-N°. ø-Code MF
Example: EH1260
Order-N°. EH1260 029 G
Ø UN
Code d P L l l 1 l 3 d 2 a
029 M 2.5 0.35 50 9.00 - 13.0 2.8 2.1 3 2.15 • EG
031 M 3 0.35 56 5.00 18.0 16.0 3.5 2.7 3 2.65 •
032 M 3.5 0.35 56 6.00 20.0 18.0 4.0 3.0 3 3.15 •
046 M 4 0.50 63 7.00 21.0 19.0 4.5 3.4 3 3.50 •
048 M 5 0.50 70 8.00 25.0 23.0 6.0 4.9 3 4.50 •
050 M 6 0.50 80 10.00 30.0 28.0 6.0 4.9 3 5.50 •
052 M 8 0.50 90 13.00 35.0 33.0 8.0 6.2 3 7.50 •
054 M 10 0.50 100 15.00 39.0 37.0 10.0 8.0 4 9.50 •
064 M 6 0.75 80 10.00 30.0 28.0 6.0 4.9 3 5.20 •
065 M 7 0.75 80 10.00 30.0 28.0 7.0 5.5 3 6.20 •
066 M 8 0.75 90 13.00 35.0 33.0 8.0 6.2 3 7.20 •
068 M 10 0.75 100 15.00 39.0 37.0 10.0 8.0 4 9.20 •
090 M 8 1.00 90 13.00 35.0 33.0 8.0 6.2 3 7.00 •
091 M 9 1.00 90 13.00 35.0 33.0 9.0 7.0 3 8.00 •
092 M 10 1.00 100 15.00 39.0 37.0 10.0 8.0 4 9.00 •
162 M 10 1.25 100 15.00 39.0 37.0 10.0 8.0 4 8.80 •

For larger dimensions see article no. EH1261
Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
293
