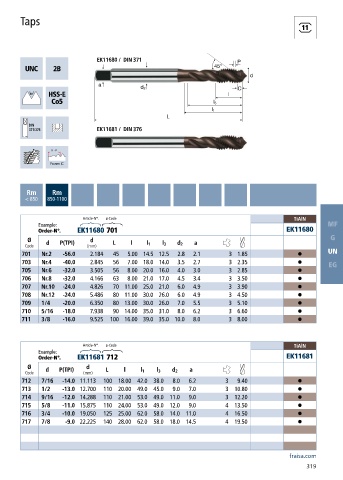

Page 321 - Carbide drills I Thread cutting tools 2023

Taps

EK11680 / DIN 371

EK11681 / DIN 376

Rm Rm
< 850 850-1100

Article-N°. ø-Code TiAlN
Example: MF
Order-N°. EK11680 701 EK11680
Ø d G
Code d P(TPI) (mm) L l l 1 l 3 d 2 a
701 Nr.2 -56.0 2.184 45 5.00 14.5 12.5 2.8 2.1 3 1.85 • UN
703 Nr.4 -40.0 2.845 56 7.00 18.0 14.0 3.5 2.7 3 2.35 • EG
705 Nr.6 -32.0 3.505 56 8.00 20.0 16.0 4.0 3.0 3 2.85 •
706 Nr.8 -32.0 4.166 63 8.00 21.0 17.0 4.5 3.4 3 3.50 •
707 Nr.10 -24.0 4.826 70 11.00 25.0 21.0 6.0 4.9 3 3.90 •
708 Nr.12 -24.0 5.486 80 11.00 30.0 26.0 6.0 4.9 3 4.50 •
709 1/4 -20.0 6.350 80 13.00 30.0 26.0 7.0 5.5 3 5.10 •
710 5/16 -18.0 7.938 90 14.00 35.0 31.0 8.0 6.2 3 6.60 •
711 3/8 -16.0 9.525 100 16.00 39.0 35.0 10.0 8.0 3 8.00 •

Article-N°. ø-Code TiAlN
Example:
Order-N°. EK11681 712 EK11681
Ø d
Code d P(TPI) (mm) L l l 1 l 3 d 2 a
712 7/16 -14.0 11.113 100 18.00 42.0 38.0 8.0 6.2 3 9.40 •
713 1/2 -13.0 12.700 110 20.00 49.0 45.0 9.0 7.0 3 10.80 •
714 9/16 -12.0 14.288 110 21.00 53.0 49.0 11.0 9.0 3 12.20 •
715 5/8 -11.0 15.875 110 24.00 53.0 49.0 12.0 9.0 4 13.50 •
716 3/4 -10.0 19.050 125 25.00 62.0 58.0 14.0 11.0 4 16.50 •
717 7/8 -9.0 22.225 140 28.00 62.0 58.0 18.0 14.5 4 19.50 •

fraisa.com
319
