Page 327 - GARR_TOOL(CATALOG_INT)

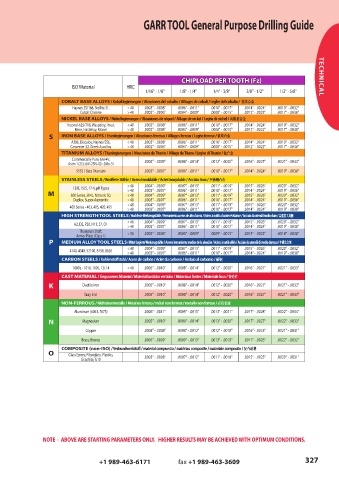

GARR TOOL General Purpose Drilling Guide

OO
O
T
AD PER
CHIPLOAD PER TOOTH (Fz) TECHNICAL
TH (Fz)
CHIPL
ISO Material HRC
1/16" - 1/8" 1/8" - 1/4" 1/4" - 3/8" 3/8" - 1/2" 1/2" - 5/8"
o /
/ Kobaltleg
obalt
leaciones del c
o / A
obalt
lliages de c
eghe del c
ierungen / A
obalt / L
COBALT BASE ALLOYS / Kobaltlegierungen / Aleaciones del cobalto / Alliages de cobalt / Leghe del cobalto / 钴基合金
钴基合金
Haynes 25/188, Stellite 21, < 40 .0003" - .0008" .0006" - .0011" .0010" - .0017" .0014" - .0024" .0019" - .0032"
Cobalt Chrome > 40 .0002" - .0006" .0004" - .0009" .0008" - .0015" .0012" - .0022" .0017" - .0030"
ierungen / A
leaciones de níquel / A
eghe di nichel /
/ N
lliage de nickel / L
ickelleg
NICKEL BASE ALLOYS / Nickellegierungen / Aleaciones de níquel / Alliage de nickel / Leghe di nichel / 高镍基合金
高镍基合金
Inconel-625/718, Waspaloy, Invar, < 40 .0003" - .0008" .0006" - .0011" .0010" - .0017" .0014" - .0024" .0019" - .0032"
Rene, Hastelloy, Monel > 40 .0002" - .0006" .0004" - .0009" .0008" - .0015" .0012" - .0022" .0017" - .0030"
S IRON BASE ALLOYS / Eisenlegierungen / Aleaciones ferrosas / Alliages ferreux / Leghe ferrose / 铁基合金
ierungen / A
ose /
r
er
er
r
lliages f
osas / A
eghe f
er
leaciones f
r
eux / L
/ Eisenleg
铁基合金
A286, Discaloy, Haynes 556, < 40 .0003" - .0008" .0006" - .0011" .0010" - .0017" .0014" - .0024" .0019" - .0032"
Carpenter 22, Greek Ascolloy > 40 .0002" - .0006" .0004" - .0009" .0008" - .0015" .0012" - .0022" .0017" - .0030"
T
/
itanio /
lliage de
eghe di
T
itanio / A
T
leaciones de
itane / L
T
itanleg
ierungen / A
TITANIUM ALLOYS / Titanlegierungen / Aleaciones de Titanio / Alliage de Titane / Leghe di Titanio / 钛合金
钛合金
Commercially Pure, 6Al-4V,
Astm 1/2/3, 6Al-25N-4Zr-2Mo-Si .0004" - .0009" .0008" - .0014" .0012" - .0020" .0016" - .0027" .0021" - .0033"
5553 / Beta Titanium .0003" - .0007" .0006" - .0011" .0010" - .0017" .0014" - .0024" .0019" - .0030"
ciaio I
o I
no
c
er
xidable / A
ostfr
dable / A
cier I
x
c
y
no
eie S
x /
tähle / A
no
/ R
STAINLESS STEELS / Rostfreie Stähle / Acero Inoxidable / Acier Inoxydable / Acciaio Inox / 不锈钢合金
不锈钢合金
< 40 .0004" - .0009" .0007" - .0013" .0011" - .0019" .0015" - .0026" .0020" - .0032"
13/8, 15/5, 17-4, pH Types > 40 .0003" - .0007" .0006" - .0011" .0010" - .0017" .0014" - .0024" .0019" - .0030"
M 300 Series, 304L, Nitronic 50, < 40 .0004" - .0009" .0007" - .0013" .0011" - .0019" .0015" - .0026" .0020" - .0032"
Duplex, Super-Austenitic > 40 .0003" - .0007" .0006" - .0011" .0010" - .0017" .0014" - .0024" .0019" - .0030"
400 Series - 403, 405, 420, 455 < 40 .0004" - .0009" .0007" - .0013" .0011" - .0019" .0015" - .0026" .0020" - .0032"
> 40
.0019" - .0030"
.0014" - .0024"
.0003" - .0007"
.0010" - .0017"
.0006" - .0011"
ta ac
er
os de alt
eugstähle / Her
e r
c
kz
er
o dur
e / A
ensili molt
o dur
ciers à outils a haut
est
r
e
o /
ciaio da ut
amien
eza / A
W
/ Hochf
ésistanc
HIGH STRENGTH TOOL STEELS / Hochfeste Werkzeugstähle / Herramienta aceros de alto dureza / Aciers à outils a haute résistance / Acciaio da utensili molto duro / 高强度工具钢
高强度工具钢
A2, D2, P20, H13, S7, O1 < 40 .0004" - .0009" .0007" - .0013" .0011" - .0019" .0015" - .0026" .0020" - .0032"
.0014" - .0024"
.0003" - .0007"
.0019" - .0030"
.0006" - .0011"
> 40
.0010" - .0017"
Thompson Shaft,
Armor Plate (Class 1) > 50 .0002" - .0006" .0005" - .0009" .0009" - .0015" .0013" - .0022" .0018" - .0028"
P MEDIUM ALLOY TOOL STEELS / Mittel Legierte Werkzeugstähle / Aceros herramienta medios de la aleación / Aciers à outils alliés / Acciaio da utensili di media durezza / 中碳合金钢
c
ezza /
ensili di media dur
ciers à outils alliés / A
ta medios de la aleación / A
amien
ciaio da ut
r
os her
W
e
/
kz
er
M
itt
el L
eg
t
ier
eugstähle / A
c
er
中碳合金钢
< 40 .0004" - .0009" .0007" - .0013" .0011" - .0019" .0015" - .0026" .0020" - .0032"
4140, 4340, 52100, 6150, 8620
> 40 .0003" - .0007" .0006" - .0011" .0010" - .0017" .0014" - .0024" .0019" - .0030"
c
ciaio al car
off
bone / A
c
er
o de car
bonio /
stahl / A
/ Kohlenst
cier du car
bón / A
CARBON STEELS / Kohlenstoffstahl / Acero de carbón / Acier du carbone / Acciaio al carbonio / 碳钢
碳钢
1000’s - 1018, 1020, 12L14 < 40 .0005" - .0010" .0008" - .0014" .0012" - .0020" .0016" - .0027" .0021" - .0033"
er
egossenes M
iale fuso /
es / M
er
ial / M
a
a
/ G
t
t
iaux f
ial bastidor v
tidos / M
er
a
t
er
er
on
t
a
t
铸造件
CAST MATERIAL / Gegossenes Material / Material bastidor vertidos / Materiaux fontes / Materiale fuso / 铸造件
K Ductile Iron .0005" - .0010" .0008" - .0014" .0012" - .0020" .0016" - .0027" .0021" - .0033"
Gray Iron .0005" - .0010" .0008" - .0014" .0012" - .0020" .0016" - .0027" .0021" - .0033"
ich
eisenmetalle / M
er
r
eux / metallo non f
t
er
r
er
etal no f
/ N
oso / métal non f
oso /
r
有色金属
NON-FERROUS / Nichteisenmetalle / Metal no ferroso / métal non ferreux / metallo non ferroso / 有色金属
Aluminum (6061, 7075) .0006" - .0011" .0009" - .0015" .0013" - .0021" .0017" - .0028" .0022" - .0034"
N Magnesium .0005" - .0010" .0009" - .0014" .0013" - .0020" .0017" - .0027" .0022" - .0033"
Copper .0004" - .0008" .0008" - .0012" .0012" - .0018" .0016" - .0025" .0021" - .0031"
Brass, Bronze .0005" - .0009" .0009" - .0013" .0013" - .0019" .0017" - .0026" .0022" - .0032"
o /
off / ma
omposit
ial c
kst
ompuest
t
t
er
iau c
ér
er
iale c
er
V
/
omposit
bundw
e / ma
t
o / ma
er
复合材料
COMPOSITE (non-ISO) / Verbundwerkstoff / material compuesto / matériau composite / materiale composito / 复合材料
O Glass Epoxy, Fiberglass, Plastics,
Graphite, G10 .0003" - .0008" .0007" - .0012" .0011" - .0018" .0015" - .0025" .0020" - .0031"
NOTE - ABOVE ARE STARTING PARAMETERS ONLY. HIGHER RESULTS MAY BE ACHIEVED WITH OPTIMUM CONDITIONS.
+1 989-463-6171 fax +1 989-463-3609 327
