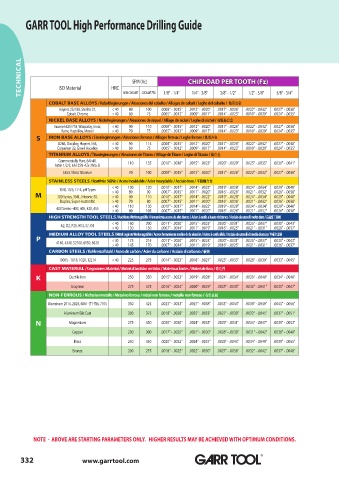

GARR TOOL High Performance Drilling Guide

TECHNICAL ISO Material HRC SFM (Vc) CHIPL O AD PER T OO TH (Fz)

CHIPLOAD PER TOOTH (Fz)

3/8" - 1/2"
1/4" - 3/8"
1/8" - 1/4"
NON-COOLANT COOLANT FED
/ Kobaltleg
leaciones del c
obalt / L
o /
eghe del c
obalt
ierungen / A
lliages de c
obalt
o / A
钴基合金
COBALT BASE ALLOYS / Kobaltlegierungen / Aleaciones del cobalto / Alliages de cobalt / Leghe del cobalto / 钴基合金 1/2" - 5/8" 5/8" - 3/4"
Haynes 25/188, Stellite 21, < 40 80 100 .0008" - .0015" .0012" - .0020" .0017" - .0026" .0022" - .0032" .0027" - .0038"
Cobalt Chrome > 40 60 75 .0005" - .0012" .0009" - .0017" .0014" - .0023" .0019" - .0029" .0024" - .0035"
ickelleg
/ N
eghe di nichel /
lliage de nickel / L
ierungen / A
leaciones de níquel / A
高镍基合金
NICKEL BASE ALLOYS / Nickellegierungen / Aleaciones de níquel / Alliage de nickel / Leghe di nichel / 高镍基合金
Inconel-625/718, Waspaloy, Invar, < 40 90 110 .0008" - .0015" .0012" - .0020" .0017" - .0026" .0022" - .0032" .0027" - .0038"
Rene, Hastelloy, Monel > 40 70 75 .0005" - .0012" .0009" - .0017" .0014" - .0023" .0019" - .0029" .0024" - .0035"
S IRON BASE ALLOYS / Eisenlegierungen / Aleaciones ferrosas / Alliages ferreux / Leghe ferrose / 铁基合金
ierungen / A
/ Eisenleg
r
er
lliages f
eux / L
osas / A
er
r
er
eghe f
ose /
r
leaciones f
铁基合金
A286, Discaloy, Haynes 556, < 40 90 115 .0008" - .0015" .0012" - .0020" .0017" - .0026" .0022" - .0032" .0027" - .0038"
Carpenter 22, Greek Ascolloy > 40 60 75 .0005" - .0012" .0009" - .0017" .0014" - .0023" .0019" - .0029" .0024" - .0035"
itane / L
ierungen / A
itanio /
leaciones de
T
eghe di
T
T
itanleg
lliage de
itanio / A
T
/
TITANIUM ALLOYS / Titanlegierungen / Aleaciones de Titanio / Alliage de Titane / Leghe di Titanio / 钛合金
钛合金
Commercially Pure, 6Al-4V,
Astm 1/2/3, 6Al-25N-4Zr-2Mo-Si 110 135 .0010" - .0018" .0015" - .0023" .0020" - .0029" .0025" - .0035" .0030" - .0041"
5553 / Beta Titanium 70 100 .0008" - .0015" .0012" - .0020" .0017" - .0026" .0022" - .0032" .0027" - .0038"
er
eie S
c
no
ostfr
xidable / A
ciaio I
no
tähle / A
c
o I
no
dable / A
/ R
y
x
cier I
x /
不锈钢合金
STAINLESS STEELS / Rostfreie Stähle / Acero Inoxidable / Acier Inoxydable / Acciaio Inox / 不锈钢合金
13/8, 15/5, 17-4, pH Types < 40 100 120 .0010" - .0017" .0014" - .0022" .0019" - .0028" .0024" - .0034" .0029" - .0040"
.0007" - .0015"
.0021" - .0032"
80
.0016" - .0026"
.0026" - .0038"
90
.0011" - .0020"
> 40
M 300 Series, 304L, Nitronic 50, < 40 90 110 .0010" - .0017" .0014" - .0022" .0019" - .0028" .0024" - .0034" .0029" - .0040"
Duplex, Super-Austenitic > 40 70 80 .0007" - .0015" .0011" - .0020" .0016" - .0026" .0021" - .0032" .0026" - .0038"
< 40 110 130 .0010" - .0017" .0014" - .0022" .0019" - .0028" .0024" - .0034" .0029" - .0040"
400 Series - 403, 405, 420, 455
> 40 80 105 .0007" - .0015" .0011" - .0020" .0016" - .0026" .0021" - .0032" .0026" - .0038"
ta ac
o dur
e r
ésistanc
W
amien
o dur
ciers à outils a haut
r
/ Hochf
e
o /
er
ciaio da ut
est
e / A
c
eza / A
er
ensili molt
os de alt
eugstähle / Her
kz
HIGH STRENGTH TOOL STEELS / Hochfeste Werkzeugstähle / Herramienta aceros de alto dureza / Aciers à outils a haute résistance / Acciaio da utensili molto duro / 高强度工具钢
高强度工具钢
< 40 160 200 .0011" - .0020" .0015" - .0025" .0020" - .0031" .0025" - .0037" .0030" - .0043"
A2, D2, P20, H13, S7, O1
> 40 130 150 .0007" - .0014" .0011" - .0019" .0016" - .0025" .0021" - .0031" .0026" - .0037"
ciaio da ut
ciers à outils alliés / A
ta medios de la aleación / A
ensili di media dur
ezza /
c
amien
r
W
e
er
eugstähle / A
kz
t
el L
itt
/ M
ier
eg
c
er
os her
MEDIUM ALLOY TOOL STEELS / Mittel Legierte Werkzeugstähle / Aceros herramienta medios de la aleación / Aciers à outils alliés / Acciaio da utensili di media durezza / 中碳合金钢
中碳合金钢
P < 40 175 215 .0011" - .0020" .0015" - .0025" .0020" - .0031" .0025" - .0037" .0030" - .0043"
4140, 4340, 52100, 6150, 8620
> 40 145 170 .0007" - .0014" .0011" - .0019" .0016" - .0025" .0021" - .0031" .0026" - .0037"
o de car
ciaio al car
bone / A
cier du car
er
bón / A
stahl / A
off
c
bonio /
c
/ Kohlenst
碳钢
CARBON STEELS / Kohlenstoffstahl / Acero de carbón / Acier du carbone / Acciaio al carbonio / 碳钢
1000’s - 1018, 1020, 12L14 < 40 225 275 .0014" - .0023" .0018" - .0027" .0023" - .0033" .0028" - .0039" .0033" - .0045"
egossenes M
a
iale fuso /
/ G
er
er
a
t
t
ial / M
er
iaux f
ial bastidor v
er
a
t
er
es / M
t
a
t
on
tidos / M
铸造件
CAST MATERIAL / Gegossenes Material / Material bastidor vertidos / Materiaux fontes / Materiale fuso / 铸造件
K Ductile Iron 250 350 .0015" - .0023" .0019" - .0028" .0024" - .0034" .0029" - .0040" .0034" - .0046"
Gray Iron 275 375 .0016" - .0024" .0020" - .0029" .0025" - .0035" .0030" - .0041" .0035" - .0047"
/ N
ich
er
r
er
etal no f
r
er
oso / métal non f
eux / metallo non f
oso /
eisenmetalle / M
t
r
NON-FERROUS / Nichteisenmetalle / Metal no ferroso / métal non ferreux / metallo non ferroso / 有色金属
有色金属
Aluminum 2014, 2024, 6061-(T1-T6), 7075 350 425 .0023" - .0033" .0027" - .0038" .0033" - .0044" .0038" - .0050" .0043" - .0056"
Aluminum Die Cast 300 375 .0018" - .0028" .0022" - .0033" .0027" - .0039" .0032" - .0045" .0037" - .0051"
N Magnesium 275 350 .0020" - .0030" .0024" - .0035" .0029" - .0041" .0034" - .0047" .0039" - .0053"
Copper 200 300 .0017" - .0025" .0021" - .0030" .0026" - .0036" .0031" - .0042" .0036" - .0048"
Brass 250 350 .0020" - .0032" .0024" - .0037" .0029" - .0043" .0034" - .0049" .0039" - .0055"
Bronze 200 275 .0018" - .0025" .0022" - .0030" .0027" - .0036" .0032" - .0042" .0037" - .0048"
NOTE - ABOVE ARE STARTING PARAMETERS ONLY. HIGHER RESULTS MAY BE ACHIEVED WITH OPTIMUM CONDITIONS.
