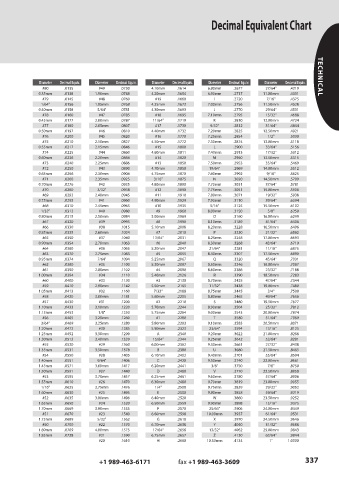

Decimal Equivalent Chart

Diameter Decimal Equiv. Diameter Decimal Equiv. Diameter Decimal Equiv. Diameter Decimal Equiv. Diameter Decimal Equiv. TECHNICAL
#80 .0135 #49 .0730 4.10mm .1614 6.80mm .2677 27/64" .4219
0.35mm .0138 1.90mm .0748 4.20mm .1654 6.90mm .2717 11.00mm .4331
#79 .0145 #48 .0760 #19 .1660 I .2720 7/16" .4375
1/64" .0156 1.95mm .0768 4.25mm .1673 7.00mm .2756 11.50mm .4528
0.40mm .0158 5/64" .0781 4.30mm .1693 J .2770 29/64" .4531
#78 .0160 #47 .0785 #18 .1695 7.10mm .2795 15/32" .4688
0.45mm .0177 2.00mm .0787 11/64" .1719 K .2810 12.00mm .4724
#77 .0180 2.05mm .0807 #17 .1730 9/32" .2812 31/64" .4844
0.50mm .0197 #46 .0810 4.40mm .1732 7.20mm .2835 12.50mm .4921
#76 .0200 #45 .0820 #16 .1770 7.25mm .2854 1/2" .5000
#75 .0210 2.10mm .0827 4.50mm .1772 7.30mm .2874 13.00mm .5118
0.55mm .0217 2.15mm .0846 #15 .1800 L .2900 33/64" .5156
#74 .0225 #44 .0860 4.60mm .1811 7.40mm .2913 17/32" .5312
0.60mm .0236 2.20mm .0866 #14 .1820 M .2950 13.50mm .5315
#73 .0240 2.25mm .0886 #13 .1850 7.50mm .2953 35/64" .5469
#72 .0250 #43 .0890 4.70mm .1850 19/64" .2969 14.00mm .5512
0.65mm .0256 2.30mm .0906 4.75mm .1870 7.60mm .2992 9/16" .5625
#71 .0260 2.35mm .0925 3/16" .1875 N .3020 14.50mm .5709
0.70mm .0276 #42 .0935 4.80mm .1890 7.70mm .3031 37/64" .5781
#70 .0280 3/32" .0938 #12 .1890 7.75mm .3051 15.00mm .5906
#69 .0292 2.40mm .0945 #11 .1910 7.80mm .3071 19/32" .5938
0.75mm .0295 #41 .0960 4.90mm .1929 7.90mm .3110 39/64" .6094
#68 .0310 2.45mm .0965 #10 .1935 5/16" .3125 15.50mm .6102
1/32" .0312 #40 .0980 #9 .1960 8.00mm .3150 5/8" .6250
0.80mm .0315 2.50mm .0984 5.00mm .1969 O .3160 16.00mm .6299
#67 .0320 #39 .0995 #8 .1990 8.10mm .3189 41/64" .6406
#66 .0330 #38 .1015 5.10mm .2008 8.20mm .3228 16.50mm .6496
0.85mm .0335 2.60mm .1024 #7 .2010 P .3230 21/32" .6562
#65 .0350 #37 .1040 13/64" .2031 8.25mm .3248 17.00mm .6693
0.90mm .0354 2.70mm .1063 #6 .2040 8.30mm .3268 43/64" .6719
#64 .0360 #36 .1065 5.20mm .2047 21/64" .3281 11/16" .6875
#63 .0370 2.75mm .1083 #5 .2055 8.40mm .3307 17.50mm .6890
0.95mm .0374 7/64" .1094 5.25mm .2067 Q .3320 45/64" .7031
#62 .0380 #35 .1100 5.30mm .2087 8.50mm .3346 18.00mm .7087
#61 .0390 2.80mm .1102 #4 .2090 8.60mm .3386 23/32" .7188
1.00mm .0394 #34 .1110 5.40mm .2126 R .3390 18.50mm .7283
#60 .0400 #33 .1130 #3 .2130 8.70mm .3425 47/64" .7344
#59 .0410 2.90mm .1142 5.50mm .2165 11/32" .3438 19.00mm .7480
1.05mm .0413 #32 .1160 7/32" .2188 8.75mm .3445 3/4" .7500
#58 .0420 3.00mm .1181 5.60mm .2205 8.80mm .3465 49/64" .7656
#57 .0430 #31 .1200 #2 .2210 S .3480 19.50mm .7677
1.10mm .0433 3.10mm .1220 5.70mm .2244 8.90mm .3504 25/32" .7812
1.15mm .0453 1/8" .1250 5.75mm .2264 9.00mm .3543 20.00mm .7874
#56 .0465 3.20mm .1260 #1 .2280 T .3580 51/64" .7969
3/64" .0469 3.25mm .1280 5.80mm .2283 9.10mm .3583 20.50mm .8071
1.20mm .0472 #30 .1285 5.90mm .2323 23/64" .3594 13/16" .8125
1.25mm .0492 3.30mm .1299 A .2340 9.20mm .3622 21.00mm .8268
1.30mm .0512 3.40mm .1339 15/64" .2344 9.25mm .3642 53/64" .8281
#55 .0520 #29 .1360 6.00mm .2362 9.30mm .3661 27/32" .8438
1.35mm .0531 3.50mm .1378 B .2380 U .3680 21.50mm .8465
#54 .0550 #28 .1405 6.10mm .2402 9.40mm .3701 55/64" .8594
1.40mm .0551 9/64" .1406 C .2420 9.50mm .3740 22.00mm .8661
1.45mm .0571 3.60mm .1417 6.20mm .2441 3/8" .3750 7/8" .8750
1.50mm .0591 #27 .1440 D .2460 V .3770 22.50mm .8858
#53 .0595 3.70mm .1457 6.25mm .2461 9.60mm .3780 57/64" .8906
1.55mm .0610 #26 .1470 6.30mm .2480 9.70mm .3819 23.00mm .9055
1/16" .0625 3.75mm .1476 1/4" .2500 9.75mm .3839 29/32" .9062
1.60mm .0630 #25 .1495 E .2500 9.80mm .3858 59/64" .9219
#52 .0635 3.80mm .1496 6.40mm .2520 W .3860 23.50mm .9252
1.65mm .0650 #24 .1520 6.50mm .2559 9.90mm .3898 15/16" .9375
1.70mm .0669 3.90mm .1535 F .2570 25/64" .3906 24.00mm .9449
#51 .0670 #23 .1540 6.60mm .2598 10.00mm .3937 61/64" .9531
1.75mm .0689 5/32" .1562 G .2610 X .3970 24.50mm .9646
#50 .0700 #22 .1570 6.70mm .2638 Y .4040 31/32" .9688
1.80mm .0709 4.00mm .1575 17/64" .2656 13/32" .4062 25.00mm .9843
1.85mm .0728 #21 .1590 6.75mm .2657 Z .4130 63/64" .9844
#20 .1610 H .2660 10.50mm .4134 1" 1.0000
