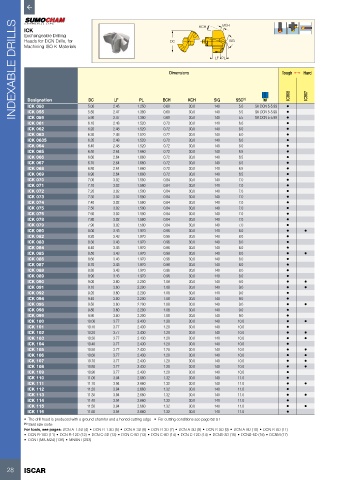

Page 30 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS ICK Dimensions KCH LF PL SIG Tough 1 Hard
BCH
Exchangeable Drilling
Heads for DCN Drills, for
DC
Machining ISO K Materials

IC907
IC908
Designation
LF
PL
5.0
0.60
30.0
5.00
140
ICK 050
•
ICK 055
2.47
1.380
0.60
5.50
30.0
SK DCN 5-5.99
5.5
140
•
ICK 059
1.380
140
0.60
5.90
30.0
5.5
SK DCN 5-5.99
2.47
•
ICK 061 DC 2.45 1.250 BCH KCH SIG SSC (1) SK DCN 5-5.99 •
2.48
6.0
140
1.520
30.0
6.10
0.72
ICK 062 6.20 2.48 1.520 0.72 30.0 140 6.0 •
ICK 063 6.30 2.48 1.520 0.72 30.0 140 6.0 •
ICK 0635 6.35 2.48 1.520 0.72 30.0 140 6.0 •
ICK 064 6.40 2.48 1.520 0.72 30.0 140 6.0 •
ICK 065 6.50 2.64 1.660 0.72 30.0 140 6.5 •
ICK 066 6.60 2.64 1.660 0.72 30.0 140 6.5 •
ICK 067 6.70 2.64 1.660 0.72 30.0 140 6.5 •
ICK 068 6.80 2.64 1.660 0.72 30.0 140 6.5 •
ICK 069 6.90 2.64 1.660 0.72 30.0 140 6.5 •
ICK 070 7.00 3.02 1.580 0.84 30.0 140 7.0 •
ICK 071 7.10 3.02 1.580 0.84 30.0 140 7.0 •
ICK 072 7.20 3.02 1.580 0.84 30.0 140 7.0 •
ICK 073 7.30 3.02 1.580 0.84 30.0 140 7.0 •
ICK 074 7.40 3.02 1.580 0.84 30.0 140 7.0 •
ICK 075 7.50 3.02 1.580 0.84 30.0 140 7.0 •
ICK 076 7.60 3.02 1.580 0.84 30.0 140 7.0 •
ICK 078 7.80 3.02 1.580 0.84 30.0 140 7.0 •
ICK 079 7.90 3.02 1.580 0.84 30.0 140 7.0 •
ICK 080 8.00 3.43 1.970 0.96 30.0 140 8.0 • •
ICK 082 8.20 3.43 1.970 0.96 30.0 140 8.0 •
ICK 083 8.30 3.43 1.970 0.96 30.0 140 8.0 •
ICK 084 8.40 3.43 1.970 0.96 30.0 140 8.0 •
ICK 085 8.50 3.43 1.970 0.96 30.0 140 8.0 • •
ICK 086 8.60 3.43 1.970 0.96 30.0 140 8.0 •
ICK 087 8.70 3.43 1.970 0.96 30.0 140 8.0 •
ICK 088 8.80 3.43 1.970 0.96 30.0 140 8.0 •
ICK 089 8.90 3.43 1.970 0.96 30.0 140 8.0 •
ICK 090 9.00 3.60 2.200 1.08 30.0 140 9.0 • •
ICK 091 9.10 3.60 2.200 1.08 30.0 140 9.0 • •
ICK 092 9.20 3.60 2.200 1.08 30.0 140 9.0 •
ICK 094 9.40 3.60 2.200 1.08 30.0 140 9.0 •
ICK 095 9.50 3.60 2.200 1.08 30.0 140 9.0 • •
ICK 098 9.80 3.60 2.200 1.08 30.0 140 9.0 •
ICK 099 9.90 3.60 2.200 1.08 30.0 140 9.0 •
ICK 100 10.00 3.77 2.430 1.20 30.0 140 10.0 • •
ICK 101 10.10 3.77 2.430 1.20 30.0 140 10.0 •
ICK 102 10.20 3.77 2.430 1.20 30.0 140 10.0 • •
ICK 103 10.30 3.77 2.430 1.20 30.0 140 10.0 • •
ICK 104 10.40 3.77 2.430 1.20 30.0 140 10.0 •
ICK 105 10.50 3.77 2.430 1.20 30.0 140 10.0 • •
ICK 106 10.60 3.77 2.430 1.20 30.0 140 10.0 • •
ICK 107 10.70 3.77 2.430 1.20 30.0 140 10.0 • •
ICK 108 10.80 3.77 2.430 1.20 30.0 140 10.0 • •
ICK 109 10.90 3.77 2.430 1.20 30.0 140 10.0 •
ICK 110 11.00 3.94 2.660 1.32 30.0 140 11.0 •
ICK 111 11.10 3.94 2.660 1.32 30.0 140 11.0 • •
ICK 112 11.20 3.94 2.660 1.32 30.0 140 11.0 •
ICK 113 11.30 3.94 2.660 1.32 30.0 140 11.0 • •
ICK 114 11.40 3.94 2.660 1.32 30.0 140 11.0 •
ICK 115 11.50 3.94 2.660 1.32 30.0 140 11.0 • •
ICK 116 11.60 3.94 2.660 1.32 30.0 140 11.0 •
• The drill head is produced with a ground chamfer and a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136) • MNSNT (293)
