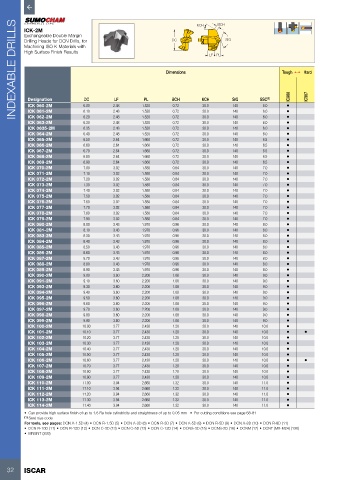

Page 34 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS ICK-2M Dimensions KCH LF PL SIG Tough 1 Hard
BCH
Exchangeable Double Margin

DC
Drilling Heads for DCN Drills, for
Machining ISO K Materials with
High Surface Finish Results

Designation
PL
LF
ICK 060-2M
0.72
30.0
140
6.00
6.0
•
ICK 061-2M
140
30.0
2.48
6.10
0.72
1.520
6.0
•
ICK 062-2M
0.72
1.520
6.0
2.48
6.20
30.0
140
•
ICK 063-2M DC 2.48 1.520 BCH KCH SIG SSC (1) • IC908 IC907
6.30
1.520
6.0
140
0.72
2.48
30.0
ICK 0635-2M 6.35 2.48 1.520 0.72 30.0 140 6.0 •
ICK 064-2M 6.40 2.48 1.520 0.72 30.0 140 6.0 •
ICK 065-2M 6.50 2.64 1.660 0.72 30.0 140 6.5 •
ICK 066-2M 6.60 2.64 1.660 0.72 30.0 140 6.5 •
ICK 067-2M 6.70 2.64 1.660 0.72 30.0 140 6.5 •
ICK 068-2M 6.80 2.64 1.660 0.72 30.0 140 6.5 •
ICK 069-2M 6.90 2.64 1.660 0.72 30.0 140 6.5 •
ICK 070-2M 7.00 3.02 1.580 0.84 30.0 140 7.0 •
ICK 071-2M 7.10 3.02 1.580 0.84 30.0 140 7.0 •
ICK 072-2M 7.20 3.02 1.580 0.84 30.0 140 7.0 •
ICK 073-2M 7.30 3.02 1.580 0.84 30.0 140 7.0 •
ICK 074-2M 7.40 3.02 1.580 0.84 30.0 140 7.0 •
ICK 075-2M 7.50 3.02 1.580 0.84 30.0 140 7.0 •
ICK 076-2M 7.60 3.02 1.580 0.84 30.0 140 7.0 •
ICK 077-2M 7.70 3.02 1.580 0.84 30.0 140 7.0 •
ICK 078-2M 7.80 3.02 1.580 0.84 30.0 140 7.0 •
ICK 079-2M 7.90 3.02 1.580 0.84 30.0 140 7.0 •
ICK 080-2M 8.00 3.43 1.970 0.96 30.0 140 8.0 •
ICK 081-2M 8.10 3.43 1.970 0.96 30.0 140 8.0 •
ICK 083-2M 8.30 3.43 1.970 0.96 30.0 140 8.0 •
ICK 084-2M 8.40 3.43 1.970 0.96 30.0 140 8.0 •
ICK 085-2M 8.50 3.43 1.970 0.96 30.0 140 8.0 •
ICK 086-2M 8.60 3.43 1.970 0.96 30.0 140 8.0 •
ICK 087-2M 8.70 3.43 1.970 0.96 30.0 140 8.0 •
ICK 088-2M 8.80 3.43 1.970 0.96 30.0 140 8.0 •
ICK 089-2M 8.90 3.43 1.970 0.96 30.0 140 8.0 •
ICK 090-2M 9.00 3.60 2.200 1.08 30.0 140 9.0 •
ICK 091-2M 9.10 3.60 2.200 1.08 30.0 140 9.0 •
ICK 093-2M 9.30 3.60 2.200 1.08 30.0 140 9.0 •
ICK 094-2M 9.40 3.60 2.200 1.08 30.0 140 9.0 •
ICK 095-2M 9.50 3.60 2.200 1.08 30.0 140 9.0 •
ICK 096-2M 9.60 3.60 2.200 1.08 30.0 140 9.0 •
ICK 097-2M 9.70 3.60 2.200 1.08 30.0 140 9.0 •
ICK 098-2M 9.80 3.60 2.200 1.08 30.0 140 9.0 •
ICK 099-2M 9.90 3.60 2.200 1.08 30.0 140 9.0 •
ICK 100-2M 10.00 3.77 2.430 1.20 30.0 140 10.0 •
ICK 101-2M 10.10 3.77 2.430 1.20 30.0 140 10.0 • •
ICK 102-2M 10.20 3.77 2.430 1.20 30.0 140 10.0 •
ICK 103-2M 10.30 3.77 2.430 1.20 30.0 140 10.0 •
ICK 104-2M 10.40 3.77 2.430 1.20 30.0 140 10.0 •
ICK 105-2M 10.50 3.77 2.430 1.20 30.0 140 10.0 •
ICK 106-2M 10.60 3.77 2.430 1.20 30.0 140 10.0 • •
ICK 107-2M 10.70 3.77 2.430 1.20 30.0 140 10.0 •
ICK 108-2M 10.80 3.77 2.430 1.20 30.0 140 10.0 •
ICK 109-2M 10.90 3.77 2.430 1.20 30.0 140 10.0 •
ICK 110-2M 11.00 3.94 2.660 1.32 30.0 140 11.0 •
ICK 111-2M 11.10 3.94 2.660 1.32 30.0 140 11.0 •
ICK 112-2M 11.20 3.94 2.660 1.32 30.0 140 11.0 •
ICK 113-2M 11.30 3.94 2.660 1.32 30.0 140 11.0 •
ICK 114-2M 11.40 3.94 2.660 1.32 30.0 140 11.0 •
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
