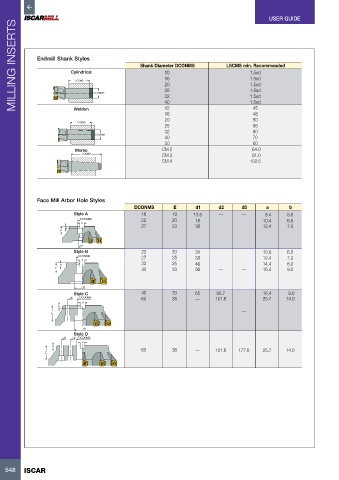

MILLING INSERTS Endmill Shank Styles Shank Diameter DCONMS LSCMS min. Recommended
10
Cylindrical
1.5xd
1.5xd
16
LCSMS
1.5xd
20
25
DCONMS
1.5xd
32
1.5xd
40
12
45
Weldon
48
16 1.5xd
20 50
LCSMS
25 56
32 60
DCONMS
40 70
50 80
Morse CM 2 64.0
LCSMS CM 3 81.0
CM 4 102.5
Face Mill Arbor Hole Styles
DCONMS E d1 d2 d3 a b
Style A 16 19 13.5 — — 8.4 5.6
DCONMS 22 20 18 10.4 6.5
a
b 27 23 38 12.4 7.0
E
d1
Style B 22 20 31 10.9 6.5
DCONMS 27 25 38 12.4 7.0
a
b 32 25 46 14.4 8.0
E 40 33 56 — — 16.4 9.0
d1
Style C 40 33 65 66.7 16.4 9.0
d2 DCONMS 60 38 — 101.6 25.7 14.0
a
b
—
E
d1
Style D
d3 d2 DCONMS
a
b
60 38 — 101.6 177.8 25.7 14.0
E
