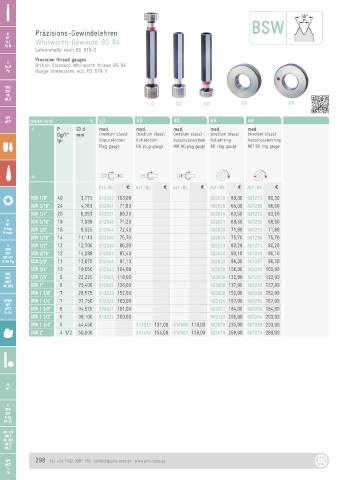

Page 298 - JBO-Katalog-2022

GF GF
BSW

M M Präzisions-Gewindelehren
MJ MF
MJ
EG-M Whitworth-Gewinde BS 84
MF
EG M
Lehrenmaße nach BS 919-2
Precision thread gauges
G G
Rc
Rc, R British Standard Whitworth thread BS 84
Pg Pg Gauge dimensions acc. BS 919-2
UNC
UNC
UNF
UNF
UNJF
UN
UN
UNJF
LD GD AD GR AR
NPT
NPT
NPTF
NPTF ORDER-CODE D LD GD AD GR AR
d P Ø d med. med. med. med. med.
Gg/1“ mm (medium class) (medium class) (medium class) (medium class) (medium class)
tpi Grenzlehrdorn Gutlehrdorn Ausschuss lehrdorn Gutlehrring Ausschuss lehrring
GL/ Plug gauge GO plug gauge NOT GO plug gauge GO ring gauge NOT GO ring gauge
Kombi
G
Art.-Nr. a Art.-Nr. a Art.-Nr. a Art.-Nr. a Art.-Nr. a

BSW 1/8“ 40 3,175 512632 103,00 502615 89,30 501273 89,30
SE
BSW 3/16“ 24 4,763 512641 71,80 502626 66,00 501280 66,00
BSW 1/4“ 20 6,350 512631 69,30 502614 63,50 501272 63,50
M M BSW 5/16“ 18 7,938 512646 71,20 502631 68,50 501285 68,50
MF MF
M keg.
M keg. BSW 3/8“ 16 9,525 512644 72,40 502629 71,80 501283 71,80
M taper
M taper
BSW 7/16“ 14 11,113 512650 75,70 502635 75,70 501288 75,70
G G BSW 1/2“ 12 12,700 512630 80,20 502613 80,20 501271 80,20
BSW
BSW
BSF BSW 9/16“ 12 14,288 512653 87,40 502640 90,10 501293 90,10
BSF
DIN477
DIN 477
R, BA, Pg
R, BA, Pg BSW 5/8“ 11 15,875 512649 91,10 502633 96,30 501287 96,30
BSW 3/4“ 10 19,050 512643 104,00 502628 106,00 501282 106,00
UNC
UNC
UNF
UNF BSW 7/8“ 9 22,225 512652 118,00 502638 122,00 501291 122,00
UNEF
UNEF
UN/UNS BSW 1“ 8 25,400 512625 136,00 502606 137,00 501263 137,00
UN, UNS
BSW 1 1/8“ 7 28,575 513033 152,00 502608 152,00 501266 152,00
NPSM BSW 1 1/4“ 7 31,750 512628 163,00 503134 167,00 501265 167,00
NPT
NPTF BSW 1 3/8“ 6 34,925 516821 181,00 502611 184,00 501269 184,00
Tr, Rd
BSW 1 1/2“ 6 38,100 512627 200,00 503133 200,00 501264 200,00
BSW 1 3/4“ 5 44,450 513933 131,00 510680 119,00 502610 233,00 501268 233,00
BSW 2“ 4 1/2 50,800 511410 154,00 510683 138,00 502619 268,00 501275 268,00

M
MF
MF
G
BSW
BSW
BSF
R, Pg
MF-EL
UNC, UNF
UNEF
UN, UNS
UNJC
UNJF
NPT 298 Tel. +49 7432 9087 750 contact@johs-boss.de www.johs-boss.de
