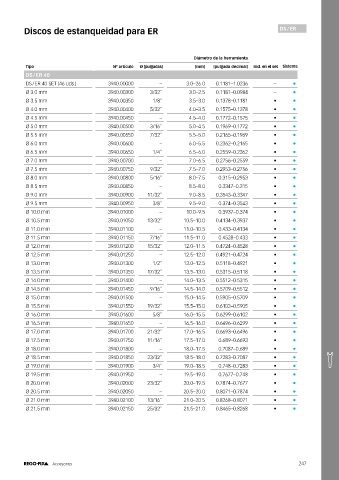

Page 251 - Catalogo_Rego-Fix

Discos de estanqueidad para ER DS / ER

Diámetro de la herramienta
Tipo Nº artículo Ø [pulgadas] [mm] [pulgada decimal] Incl. en el set Sistema
DS / ER 40
DS / ER 40 SET (46 uds.) 3940.00000 – 3.0–26.0 0.1181–1.0236 – •
Ø 3.0 mm 3940.00300 3/32" 3.0–2.5 0.1181–0.0984 – •
Ø 3.5 mm 3940.00350 1/8" 3.5–3.0 0.1378–0.1181 • •
Ø 4.0 mm 3940.00400 5/32" 4.0–3.5 0.1575–0.1378 • •
Ø 4.5 mm 3940.00450 – 4.5–4.0 0.1772–0.1575 • •
Ø 5.0 mm 3940.00500 3/16" 5.0–4.5 0.1969–0.1772 • •
Ø 5.5 mm 3940.00550 7/32" 5.5–5.0 0.2165–0.1969 • •
Ø 6.0 mm 3940.00600 – 6.0–5.5 0.2362–0.2165 • •
Ø 6.5 mm 3940.00650 1/4" 6.5–6.0 0.2559–0.2362 • •
Ø 7.0 mm 3940.00700 – 7.0–6.5 0.2756–0.2559 • •
Ø 7.5 mm 3940.00750 9/32" 7.5–7.0 0.2953–0.2756 • •
Ø 8.0 mm 3940.00800 5/16" 8.0–7.5 0.315–0.2953 • •
Ø 8.5 mm 3940.00850 – 8.5–8.0 0.3347–0.315 • •
Ø 9.0 mm 3940.00900 11/32" 9.0–8.5 0.3543–0.3347 • •
Ø 9.5 mm 3940.00950 3/8" 9.5–9.0 0.374–0.3543 • •
Ø 10.0 mm 3940.01000 – 10.0–9.5 0.3937–0.374 • •
Ø 10.5 mm 3940.01050 13/32" 10.5–10.0 0.4134–0.3937 • •
Ø 11.0 mm 3940.01100 – 11.0–10.5 0.433–0.4134 • •
Ø 11.5 mm 3940.01150 7/16" 11.5–11.0 0.4528–0.433 • •
Ø 12.0 mm 3940.01200 15/32" 12.0–11.5 0.4724–0.4528 • •
Ø 12.5 mm 3940.01250 – 12.5–12.0 0.4921–0.4724 • •
Ø 13.0 mm 3940.01300 1/2" 13.0–12.5 0.5118–0.4921 • •
Ø 13.5 mm 3940.01350 17/32" 13.5–13.0 0.5315–0.5118 • •
Ø 14.0 mm 3940.01400 – 14.0–13.5 0.5512–0.5315 • •
Ø 14.5 mm 3940.01450 9/16" 14.5–14.0 0.5709–0.5512 • •
Ø 15.0 mm 3940.01500 – 15.0–14.5 0.5905–0.5709 • •
Ø 15.5 mm 3940.01550 19/32" 15.5–15.0 0.6102–0.5905 • •
Ø 16.0 mm 3940.01600 5/8" 16.0–15.5 0.6299–0.6102 • •
Ø 16.5 mm 3940.01650 – 16.5–16.0 0.6496–0.6299 • •
Ø 17.0 mm 3940.01700 21/32" 17.0–16.5 0.6693–0.6496 • •
Ø 17.5 mm 3940.01750 11/16" 17.5–17.0 0.689–0.6693 • •
Ø 18.0 mm 3940.01800 – 18.0–17.5 0.7087–0.689 • •
Ø 18.5 mm 3940.01850 23/32" 18.5–18.0 0.7283–0.7087 • •
Ø 19.0 mm 3940.01900 3/4" 19.0–18.5 0.748–0.7283 • •
Ø 19.5 mm 3940.01950 – 19.5–19.0 0.7677–0.748 • •
Ø 20.0 mm 3940.02000 23/32" 20.0–19.5 0.7874–0.7677 • •
Ø 20.5 mm 3940.02050 – 20.5–20.0 0.8071–0.7874 • •
Ø 21.0 mm 3940.02100 13/16" 21.0–20.5 0.8268–0.8071 • •
Ø 21.5 mm 3940.02150 25/32" 21.5–21.0 0.8465–0.8268 • •

Accesorios 247
