REG. U.S. PATENT
NO. 5,779,400
NO. 6,033,158

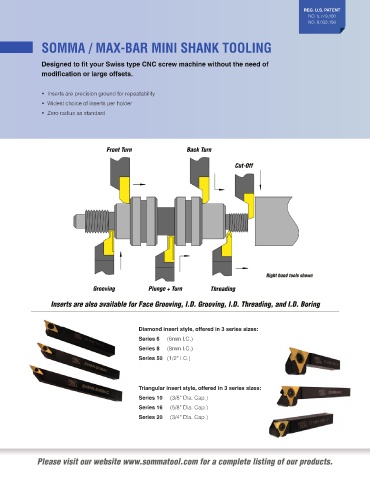

SOMMA / MAX-BAR MINI SHANK TOOLING

Designed to fit your Swiss type CNC screw machine without the need of
modification or large offsets.

• Inserts are precision ground for repeatability
• Widest choice of inserts per holder
• Zero radius as standard

Front Turn Back Turn

Cut-Off

Right hand tools shown

Grooving Plunge + Turn Threading

Inserts are also available for Face Grooving, I.D. Grooving, I.D. Threading, and I.D. Boring

Diamond insert style, offered in 3 series sizes:
Series 6 (6mm I.C.)
Series 8 (8mm I.C.)
Series 50 (1/2” I.C.)

Triangular insert style, offered in 3 series sizes:
Series 10 (3/8” Dia. Cap.)
Series 16 (5/8” Dia. Cap.)
Series 20 (3/4” Dia. Cap.)

Please visit our website www.sommatool.com for a complete listing of our products.
