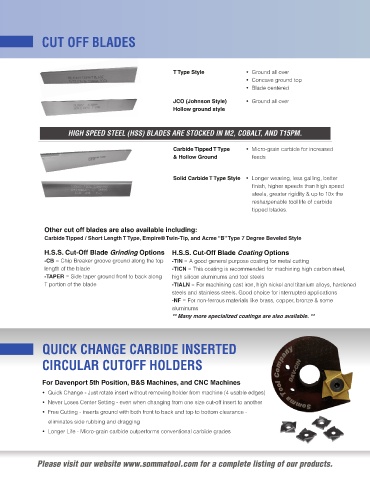

CUT OFF BLADES

T Type Style • Ground all over
• Concave ground top
• Blade centered

JCO (Johnson Style) • Ground all over
Hollow ground style

HIGH SPEED STEEL (HSS) BLADES ARE STOCKED IN M2, COBALT, AND T15PM.

Carbide Tipped T Type • Micro-grain carbide for increased
& Hollow Ground feeds

Solid Carbide T Type Style • Longer wearing, less galling, better
finish, higher speeds than high speed
steels, greater rigidity & up to 10x the
resharpenable tool life of carbide
tipped blades.

Other cut off blades are also available including:
Carbide Tipped / Short Length T Type, Empire® Twin-Tip, and Acme “B” Type 7 Degree Beveled Style

H.S.S. Cut-Off Blade Grinding Options H.S.S. Cut-Off Blade Coating Options
-CB = Chip Breaker groove ground along the top -TIN = A good general purpose coating for metal cutting
length of the blade -TICN = This coating is recommended for machining high carbon steel,
-TAPER = Side taper ground front to back along high silicon aluminums and tool steels
T portion of the blade -TIALN = For machining cast iron, high nickel and titanium alloys, hardened
steels and stainless steels. Good choice for interrupted applications
-NF = For non-ferrous materials like brass, copper, bronze & some
aluminums
** Many more specialized coatings are also available. **

QUICK CHANGE CARBIDE INSERTED

CIRCULAR CUTOFF HOLDERS

For Davenport 5th Position, B&S Machines, and CNC Machines
• Quick Change - Just rotate insert without removing holder from machine (4 usable edges)
• Never Loses Center Setting - even when changing from one size cut-off insert to another
• Free Cutting - inserts ground with both front to back and top to bottom clearance -
eliminates side rubbing and dragging
• Longer Life - Micro-grain carbide outperforms conventional carbide grades

Please visit our website www.sommatool.com for a complete listing of our products.
