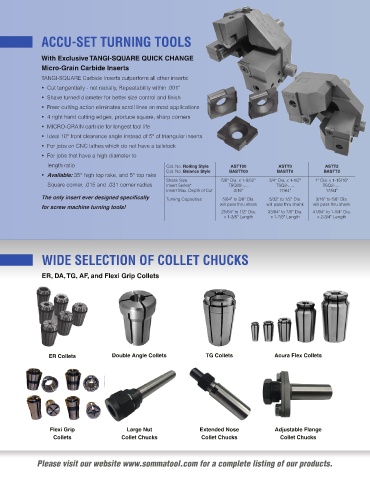

ACCU-SET TURNING TOOLS

With Exclusive TANGI-SQUARE QUICK CHANGE
Micro-Grain Carbide Inserts
TANGI-SQUARE Carbide Inserts outperform all other inserts:
• Cut tangentially - not radially, Repeatability within .001”
• Shave turned diameter for better size control and finish
• Freer cutting action eliminates scroll lines on most applications
• 4 right hand cutting edges, produce square, sharp corners
• MICRO-GRAIN carbide for longest tool life
• Ideal 10° front clearance angle instead of 5° of triangular inserts
• For jobs on CNC lathes which do not have a tailstock
• For jobs that have a high diameter to
length ratio Cat. No. Rolling Style ASTT00 ASTT0 ASTT2
Cat. No. Balance Style BASTT00 BASTT0 BASTT2
• Available: 35° high top rake, and 5° top rake
Shank Size 5/8” Dia. x 1-9/32” 3/4” Dia. x 1-1/2” 1” Dia. x 1-15/16”
Square corner, .015 and .031 corner radius Insert Series* TSQ00-..... TSQ2-..... TSQ2-.....
Insert Max. Depth of Cut 3/16” 17/64” 17/64”
The only insert ever designed specifically Turning Capacities 5/64” to 3/8” Dia. 5/32” to 1/2” Dia. 3/16” to 5/8” Dia.
for screw machine turning tools! will pass thru shank will pass thru shank will pass thru shank
25/64” to 1/2” Dia. 33/64” to 7/8” Dia. 41/64” to 1-1/4” Dia.
x 1-3/8” Length x 1-7/8” Length x 2-3/4” Length

WIDE SELECTION OF COLLET CHUCKS

ER, DA, TG, AF, and Flexi Grip Collets

ER Collets Double Angle Collets TG Collets Acura Flex Collets

Flexi Grip Large Nut Extended Nose Adjustable Flange
Collets Collet Chucks Collet Chucks Collet Chucks

Please visit our website www.sommatool.com for a complete listing of our products.
