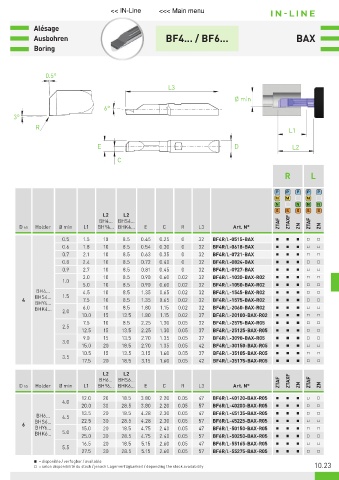

Page 429 - 21-036 APPLITEC catalogue.indb

<< IN-Line <<< Main menu IN-LINE

Alésage
Ausbohren BF4… / BF6… BAX
Boring

0.5°
L3
Ø min
6°
3°
R
L1
E D L2
C

R L

P P P P P
M M M
N N N N
S S S S S
L2 L2
BH4… BHS4… ZTAXF
D h5 Holder Ø min L1 BHY4… BHK4… E C R L3 Art. N° ZTAF ZN ZTAF ZN
0.5 1.5 10 8.5 0.45 0.25 0 32 BF4R/L-0515-BAX Ŷ Ŷ Ŷ Ƒ Ƒ
0.6 1.8 10 8.5 0.54 0.30 0 32 BF4R/L-0618-BAX Ŷ Ŷ Ŷ Ƒ Ƒ
0.7 2.1 10 8.5 0.63 0.35 0 32 BF4R/L-0721-BAX Ŷ Ŷ Ŷ Ƒ Ƒ
0.8 2.4 10 8.5 0.72 0.40 0 32 BF4R/L-0824-BAX Ŷ Ŷ Ŷ Ƒ Ƒ
0.9 2.7 10 8.5 0.81 0.45 0 32 BF4R/L-0927-BAX Ŷ Ŷ Ŷ Ƒ Ƒ
3.0 10 8.5 0.90 0.60 0.02 32 BF4R/L-1030-BAX-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
1.0
5.0 10 8.5 0.90 0.60 0.02 32 BF4R/L-1050-BAX-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
BH4… 4.5 10 8.5 1.35 0.65 0.02 32 BF4R/L-1545-BAX-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
BHS4… 1.5
4 7.5 10 8.5 1.35 0.65 0.02 32 BF4R/L-1575-BAX-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
BHY4…
BHK4… 6.0 10 8.5 1.80 1.15 0.02 32 BF4R/L-2060-BAX-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
2.0
10.0 15 13.5 1.80 1.15 0.02 37 BF4R/L-20100-BAX-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
7.5 10 8.5 2.25 1.30 0.05 32 BF4R/L-2575-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
2.5
12.5 15 13.5 2.25 1.30 0.05 37 BF4R/L-25125-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
9.0 15 13.5 2.70 1.35 0.05 37 BF4R/L-3090-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
3.0
15.0 20 18.5 2.70 1.35 0.05 42 BF4R/L-30150-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
10.5 15 13.5 3.15 1.60 0.05 37 BF4R/L-35105-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
3.5
17.5 20 18.5 3.15 1.60 0.05 42 BF4R/L-35175-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
L2 L2
BH6… BHS6… ZTAF ZTAXF ZTAF
D h5 Holder Ø min L1 BHY6… BHK6… E C R L3 Art. N° ZN ZN
12.0 20 18.5 3.80 2.20 0.05 47 BF6R/L-40120-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
4.0
20.0 30 28.5 3.80 2.20 0.05 57 BF6R/L-40200-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
13.5 20 18.5 4.28 2.30 0.05 47 BF6R/L-45135-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
BH6… 4.5
BHS6… 22.5 30 28.5 4.28 2.30 0.05 57 BF6R/L-45225-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
6
BHY6… 15.0 20 18.5 4.75 2.40 0.05 47 BF6R/L-50150-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
BHK6… 5.0
25.0 30 28.5 4.75 2.40 0.05 57 BF6R/L-50250-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
16.5 20 18.5 5.15 2.60 0.05 47 BF6R/L-55165-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
5.5
27.5 30 28.5 5.15 2.60 0.05 57 BF6R/L-55275-BAX-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
Ŷ = disponible / verfügbar / available
10.23
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending the stock availability
