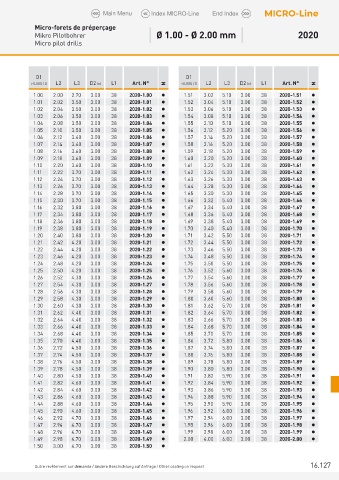

Micro-forets de préperçage
Mikro Pilotbohrer Ø 1.00 - Ø 2.00 mm 2020
Micro pilot drills

D1 D1
+0.005 / 0 L2 L3 D2 h6 L1 Art. N° N +0.005 / 0 L2 L3 D2 h6 L1 Art. N° N
1.00 2.00 2.70 3.00 38 2020-1.00  1.51 3.02 5.10 3.00 38 2020-1.51 
1.01 2.02 3.50 3.00 38 2020-1.01  1.52 3.04 5.10 3.00 38 2020-1.52 
1.02 2.04 3.50 3.00 38 2020-1.02  1.53 3.06 5.10 3.00 38 2020-1.53 
1.03 2.06 3.50 3.00 38 2020-1.03  1.54 3.08 5.10 3.00 38 2020-1.54 
1.04 2.08 3.50 3.00 38 2020-1.04  1.55 3.10 5.10 3.00 38 2020-1.55 
1.05 2.10 3.50 3.00 38 2020-1.05  1.56 3.12 5.20 3.00 38 2020-1.56 
1.06 2.12 3.60 3.00 38 2020-1.06  1.57 3.14 5.20 3.00 38 2020-1.57 
1.07 2.14 3.60 3.00 38 2020-1.07  1.58 3.16 5.20 3.00 38 2020-1.58 
1.08 2.16 3.60 3.00 38 2020-1.08  1.59 3.18 5.20 3.00 38 2020-1.59 
1.09 2.18 3.60 3.00 38 2020-1.09  1.60 3.20 5.20 3.00 38 2020-1.60 
1.10 2.20 3.60 3.00 38 2020-1.10  1.61 3.22 5.30 3.00 38 2020-1.61 
1.11 2.22 3.70 3.00 38 2020-1.11  1.62 3.24 5.30 3.00 38 2020-1.62 
1.12 2.24 3.70 3.00 38 2020-1.12  1.63 3.26 5.30 3.00 38 2020-1.63 
1.13 2.26 3.70 3.00 38 2020-1.13  1.64 3.28 5.30 3.00 38 2020-1.64 
1.14 2.28 3.70 3.00 38 2020-1.14  1.65 3.30 5.30 3.00 38 2020-1.65 
1.15 2.30 3.70 3.00 38 2020-1.15  1.66 3.32 5.40 3.00 38 2020-1.66 
1.16 2.32 3.80 3.00 38 2020-1.16  1.67 3.34 5.40 3.00 38 2020-1.67 
1.17 2.34 3.80 3.00 38 2020-1.17  1.68 3.36 5.40 3.00 38 2020-1.68 
1.18 2.36 3.80 3.00 38 2020-1.18  1.69 3.38 5.40 3.00 38 2020-1.69 
1.19 2.38 3.80 3.00 38 2020-1.19  1.70 3.40 5.40 3.00 38 2020-1.70 
1.20 2.40 3.80 3.00 38 2020-1.20  1.71 3.42 5.50 3.00 38 2020-1.71 
1.21 2.42 4.20 3.00 38 2020-1.21  1.72 3.44 5.50 3.00 38 2020-1.72 
1.22 2.44 4.20 3.00 38 2020-1.22  1.73 3.46 5.50 3.00 38 2020-1.73 
1.23 2.46 4.20 3.00 38 2020-1.23  1.74 3.48 5.50 3.00 38 2020-1.74 
1.24 2.48 4.20 3.00 38 2020-1.24  1.75 3.50 5.50 3.00 38 2020-1.75 
1.25 2.50 4.20 3.00 38 2020-1.25  1.76 3.52 5.60 3.00 38 2020-1.76 
1.26 2.52 4.30 3.00 38 2020-1.26  1.77 3.54 5.60 3.00 38 2020-1.77 
1.27 2.54 4.30 3.00 38 2020-1.27  1.78 3.56 5.60 3.00 38 2020-1.78 
1.28 2.56 4.30 3.00 38 2020-1.28  1.79 3.58 5.60 3.00 38 2020-1.79 
1.29 2.58 4.30 3.00 38 2020-1.29  1.80 3.60 5.60 3.00 38 2020-1.80 
1.30 2.60 4.30 3.00 38 2020-1.30  1.81 3.62 5.70 3.00 38 2020-1.81 
1.31 2.62 4.40 3.00 38 2020-1.31  1.82 3.64 5.70 3.00 38 2020-1.82 
1.32 2.64 4.40 3.00 38 2020-1.32  1.83 3.66 5.70 3.00 38 2020-1.83 
1.33 2.66 4.40 3.00 38 2020-1.33  1.84 3.68 5.70 3.00 38 2020-1.84 
1.34 2.68 4.40 3.00 38 2020-1.34  1.85 3.70 5.70 3.00 38 2020-1.85 
1.35 2.70 4.40 3.00 38 2020-1.35  1.86 3.72 5.80 3.00 38 2020-1.86 
1.36 2.72 4.50 3.00 38 2020-1.36  1.87 3.74 5.80 3.00 38 2020-1.87 
1.37 2.74 4.50 3.00 38 2020-1.37  1.88 3.76 5.80 3.00 38 2020-1.88 
1.38 2.76 4.50 3.00 38 2020-1.38  1.89 3.78 5.80 3.00 38 2020-1.89 
1.39 2.78 4.50 3.00 38 2020-1.39  1.90 3.80 5.80 3.00 38 2020-1.90 
1.40 2.80 4.50 3.00 38 2020-1.40  1.91 3.82 5.90 3.00 38 2020-1.91 
1.41 2.82 4.60 3.00 38 2020-1.41  1.92 3.84 5.90 3.00 38 2020-1.92 
1.42 2.84 4.60 3.00 38 2020-1.42  1.93 3.86 5.90 3.00 38 2020-1.93 
1.43 2.86 4.60 3.00 38 2020-1.43  1.94 3.88 5.90 3.00 38 2020-1.94 
1.44 2.88 4.60 3.00 38 2020-1.44  1.95 3.90 5.90 3.00 38 2020-1.95 
1.45 2.90 4.60 3.00 38 2020-1.45  1.96 3.92 6.00 3.00 38 2020-1.96 
1.46 2.92 4.70 3.00 38 2020-1.46  1.97 3.94 6.00 3.00 38 2020-1.97 
1.47 2.94 4.70 3.00 38 2020-1.47  1.98 3.96 6.00 3.00 38 2020-1.98 
1.48 2.96 4.70 3.00 38 2020-1.48  1.99 3.98 6.00 3.00 38 2020-1.99 
1.49 2.98 4.70 3.00 38 2020-1.49  2.00 4.00 6.00 3.00 38 2020-2.00 
1.50 3.00 4.70 3.00 38 2020-1.50 

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.127
