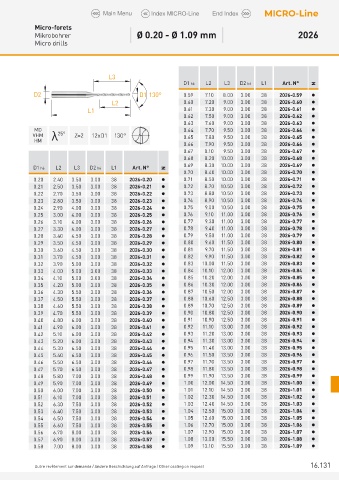

Page 933 - 25-053 APPLITEC catalogue 2025.indb

Main Menu Index MICRO-Line End Index MICRO-Line
Micro-forets
Mikrobohrer Ø 0.20 - Ø 1.09 mm 2026
Micro drills

L3
D1 h6 L2 L3 D2 h6 L1 Art. N° N
D2 D1 130° 0.59 7.10 8.00 3.00 38 2026-0.59 
L2 0.60 7.20 9.00 3.00 38 2026-0.60 
L1 0.61 7.30 9.00 3.00 38 2026-0.61 
0.62 7.50 9.00 3.00 38 2026-0.62 
0.63 7.60 9.00 3.00 38 2026-0.63 
MD 0.64 7.70 9.50 3.00 38 2026-0.64 
VHM λ 25° Z=2 12xD1 130° 0.65 7.80 9.50 3.00 38 2026-0.65 
HM
0.66 7.90 9.50 3.00 38 2026-0.66 
0.67 8.10 9.50 3.00 38 2026-0.67 
0.68 8.20 10.00 3.00 38 2026-0.68 
D1 h6 L2 L3 D2 h6 L1 Art. N° N 0.69 8.30 10.00 3.00 38 2026-0.69 
0.70 8.40 10.00 3.00 38 2026-0.70 
0.20 2.40 3.50 3.00 38 2026-0.20  0.71 8.50 10.00 3.00 38 2026-0.71 
0.21 2.50 3.50 3.00 38 2026-0.21  0.72 8.70 10.50 3.00 38 2026-0.72 
0.22 2.70 3.50 3.00 38 2026-0.22  0.73 8.80 10.50 3.00 38 2026-0.73 
0.23 2.80 3.50 3.00 38 2026-0.23  0.74 8.90 10.50 3.00 38 2026-0.74 
0.24 2.90 4.00 3.00 38 2026-0.24  0.75 9.00 10.50 3.00 38 2026-0.75 
0.25 3.00 4.00 3.00 38 2026-0.25  0.76 9.10 11.00 3.00 38 2026-0.76 
0.26 3.10 4.00 3.00 38 2026-0.26  0.77 9.30 11.00 3.00 38 2026-0.77 
0.27 3.30 4.00 3.00 38 2026-0.27  0.78 9.40 11.00 3.00 38 2026-0.78 
0.28 3.40 4.50 3.00 38 2026-0.28  0.79 9.50 11.00 3.00 38 2026-0.79 
0.29 3.50 4.50 3.00 38 2026-0.29  0.80 9.60 11.50 3.00 38 2026-0.80 
0.30 3.60 4.50 3.00 38 2026-0.30  0.81 9.70 11.50 3.00 38 2026-0.81 
0.31 3.70 4.50 3.00 38 2026-0.31  0.82 9.90 11.50 3.00 38 2026-0.82 
0.32 3.90 5.00 3.00 38 2026-0.32  0.83 10.00 11.50 3.00 38 2026-0.83 
0.33 4.00 5.00 3.00 38 2026-0.33  0.84 10.10 12.00 3.00 38 2026-0.84 
0.34 4.10 5.00 3.00 38 2026-0.34  0.85 10.20 12.00 3.00 38 2026-0.85 
0.35 4.20 5.00 3.00 38 2026-0.35  0.86 10.30 12.00 3.00 38 2026-0.86 
0.36 4.30 5.50 3.00 38 2026-0.36  0.87 10.50 12.00 3.00 38 2026-0.87 
0.37 4.50 5.50 3.00 38 2026-0.37  0.88 10.60 12.50 3.00 38 2026-0.88 
0.38 4.60 5.50 3.00 38 2026-0.38  0.89 10.70 12.50 3.00 38 2026-0.89 
0.39 4.70 5.50 3.00 38 2026-0.39  0.90 10.80 12.50 3.00 38 2026-0.90 
0.40 4.80 6.00 3.00 38 2026-0.40  0.91 10.90 12.50 3.00 38 2026-0.91 
0.41 4.90 6.00 3.00 38 2026-0.41  0.92 11.10 13.00 3.00 38 2026-0.92 
0.42 5.10 6.00 3.00 38 2026-0.42  0.93 11.20 13.00 3.00 38 2026-0.93 
0.43 5.20 6.00 3.00 38 2026-0.43  0.94 11.30 13.00 3.00 38 2026-0.94 
0.44 5.30 6.50 3.00 38 2026-0.44  0.95 11.40 13.00 3.00 38 2026-0.95 
0.45 5.40 6.50 3.00 38 2026-0.45  0.96 11.50 13.50 3.00 38 2026-0.96 
0.46 5.50 6.50 3.00 38 2026-0.46  0.97 11.70 13.50 3.00 38 2026-0.97 
0.47 5.70 6.50 3.00 38 2026-0.47  0.98 11.80 13.50 3.00 38 2026-0.98 
0.48 5.80 7.00 3.00 38 2026-0.48  0.99 11.90 13.50 3.00 38 2026-0.99 
0.49 5.90 7.00 3.00 38 2026-0.49  1.00 12.00 14.50 3.00 38 2026-1.00 
0.50 6.00 7.00 3.00 38 2026-0.50  1.01 12.10 14.50 3.00 38 2026-1.01 
0.51 6.10 7.00 3.00 38 2026-0.51  1.02 12.30 14.50 3.00 38 2026-1.02 
0.52 6.30 7.50 3.00 38 2026-0.52  1.03 12.40 14.50 3.00 38 2026-1.03 
0.53 6.40 7.50 3.00 38 2026-0.53  1.04 12.50 15.00 3.00 38 2026-1.04 
0.54 6.50 7.50 3.00 38 2026-0.54  1.05 12.60 15.00 3.00 38 2026-1.05 
0.55 6.60 7.50 3.00 38 2026-0.55  1.06 12.70 15.00 3.00 38 2026-1.06 
0.56 6.70 8.00 3.00 38 2026-0.56  1.07 12.90 15.00 3.00 38 2026-1.07 
0.57 6.90 8.00 3.00 38 2026-0.57  1.08 13.00 15.50 3.00 38 2026-1.08 
0.58 7.00 8.00 3.00 38 2026-0.58  1.09 13.10 15.50 3.00 38 2026-1.09 

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.131
