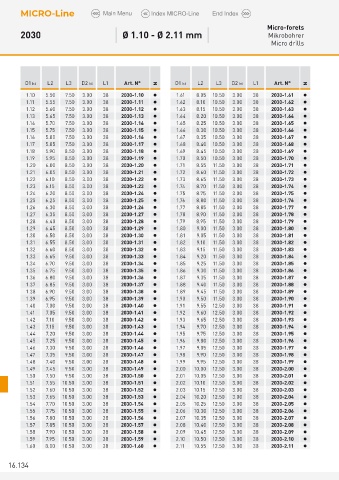

Micro-forets
2030 Ø 1.10 - Ø 2.11 mm Mikrobohrer
Micro drills

D1 h6 L2 L3 D2 h6 L1 Art. N° N D1 h6 L2 L3 D2 h6 L1 Art. N° N
1.10 5.50 7.50 3.00 38 2030-1.10  1.61 8.05 10.50 3.00 38 2030-1.61 
1.11 5.55 7.50 3.00 38 2030-1.11  1.62 8.10 10.50 3.00 38 2030-1.62 
1.12 5.60 7.50 3.00 38 2030-1.12  1.63 8.15 10.50 3.00 38 2030-1.63 
1.13 5.65 7.50 3.00 38 2030-1.13  1.64 8.20 10.50 3.00 38 2030-1.64 
1.14 5.70 7.50 3.00 38 2030-1.14  1.65 8.25 10.50 3.00 38 2030-1.65 
1.15 5.75 7.50 3.00 38 2030-1.15  1.66 8.30 10.50 3.00 38 2030-1.66 
1.16 5.80 7.50 3.00 38 2030-1.16  1.67 8.35 10.50 3.00 38 2030-1.67 
1.17 5.85 7.50 3.00 38 2030-1.17  1.68 8.40 10.50 3.00 38 2030-1.68 
1.18 5.90 8.50 3.00 38 2030-1.18  1.69 8.45 10.50 3.00 38 2030-1.69 
1.19 5.95 8.50 3.00 38 2030-1.19  1.70 8.50 10.50 3.00 38 2030-1.70 
1.20 6.00 8.50 3.00 38 2030-1.20  1.71 8.55 11.50 3.00 38 2030-1.71 
1.21 6.05 8.50 3.00 38 2030-1.21  1.72 8.60 11.50 3.00 38 2030-1.72 
1.22 6.10 8.50 3.00 38 2030-1.22  1.73 8.65 11.50 3.00 38 2030-1.73 
1.23 6.15 8.50 3.00 38 2030-1.23  1.74 8.70 11.50 3.00 38 2030-1.74 
1.24 6.20 8.50 3.00 38 2030-1.24  1.75 8.75 11.50 3.00 38 2030-1.75 
1.25 6.25 8.50 3.00 38 2030-1.25  1.76 8.80 11.50 3.00 38 2030-1.76 
1.26 6.30 8.50 3.00 38 2030-1.26  1.77 8.85 11.50 3.00 38 2030-1.77 
1.27 6.35 8.50 3.00 38 2030-1.27  1.78 8.90 11.50 3.00 38 2030-1.78 
1.28 6.40 8.50 3.00 38 2030-1.28  1.79 8.95 11.50 3.00 38 2030-1.79 
1.29 6.45 8.50 3.00 38 2030-1.29  1.80 9.00 11.50 3.00 38 2030-1.80 
1.30 6.50 8.50 3.00 38 2030-1.30  1.81 9.05 11.50 3.00 38 2030-1.81 
1.31 6.55 8.50 3.00 38 2030-1.31  1.82 9.10 11.50 3.00 38 2030-1.82 
1.32 6.60 8.50 3.00 38 2030-1.32  1.83 9.15 11.50 3.00 38 2030-1.83 
1.33 6.65 9.50 3.00 38 2030-1.33  1.84 9.20 11.50 3.00 38 2030-1.84 
1.34 6.70 9.50 3.00 38 2030-1.34  1.85 9.25 11.50 3.00 38 2030-1.85 
1.35 6.75 9.50 3.00 38 2030-1.35  1.86 9.30 11.50 3.00 38 2030-1.86 
1.36 6.80 9.50 3.00 38 2030-1.36  1.87 9.35 11.50 3.00 38 2030-1.87 
1.37 6.85 9.50 3.00 38 2030-1.37  1.88 9.40 11.50 3.00 38 2030-1.88 
1.38 6.90 9.50 3.00 38 2030-1.38  1.89 9.45 11.50 3.00 38 2030-1.89 
1.39 6.95 9.50 3.00 38 2030-1.39  1.90 9.50 11.50 3.00 38 2030-1.90 
1.40 7.00 9.50 3.00 38 2030-1.40  1.91 9.55 12.50 3.00 38 2030-1.91 
1.41 7.05 9.50 3.00 38 2030-1.41  1.92 9.60 12.50 3.00 38 2030-1.92 
1.42 7.10 9.50 3.00 38 2030-1.42  1.93 9.65 12.50 3.00 38 2030-1.93 
1.43 7.15 9.50 3.00 38 2030-1.43  1.94 9.70 12.50 3.00 38 2030-1.94 
1.44 7.20 9.50 3.00 38 2030-1.44  1.95 9.75 12.50 3.00 38 2030-1.95 
1.45 7.25 9.50 3.00 38 2030-1.45  1.96 9.80 12.50 3.00 38 2030-1.96 
1.46 7.30 9.50 3.00 38 2030-1.46  1.97 9.85 12.50 3.00 38 2030-1.97 
1.47 7.35 9.50 3.00 38 2030-1.47  1.98 9.90 12.50 3.00 38 2030-1.98 
1.48 7.40 9.50 3.00 38 2030-1.48  1.99 9.95 12.50 3.00 38 2030-1.99 
1.49 7.45 9.50 3.00 38 2030-1.49  2.00 10.00 12.50 3.00 38 2030-2.00 
1.50 7.50 9.50 3.00 38 2030-1.50  2.01 10.05 12.50 3.00 38 2030-2.01 
1.51 7.55 10.50 3.00 38 2030-1.51  2.02 10.10 12.50 3.00 38 2030-2.02 
1.52 7.60 10.50 3.00 38 2030-1.52  2.03 10.15 12.50 3.00 38 2030-2.03 
1.53 7.65 10.50 3.00 38 2030-1.53  2.04 10.20 12.50 3.00 38 2030-2.04 
1.54 7.70 10.50 3.00 38 2030-1.54  2.05 10.25 12.50 3.00 38 2030-2.05 
1.55 7.75 10.50 3.00 38 2030-1.55  2.06 10.30 12.50 3.00 38 2030-2.06 
1.56 7.80 10.50 3.00 38 2030-1.56  2.07 10.35 12.50 3.00 38 2030-2.07 
1.57 7.85 10.50 3.00 38 2030-1.57  2.08 10.40 12.50 3.00 38 2030-2.08 
1.58 7.90 10.50 3.00 38 2030-1.58  2.09 10.45 12.50 3.00 38 2030-2.09 
1.59 7.95 10.50 3.00 38 2030-1.59  2.10 10.50 12.50 3.00 38 2030-2.10 
1.60 8.00 10.50 3.00 38 2030-1.60  2.11 10.55 12.50 3.00 38 2030-2.11 
