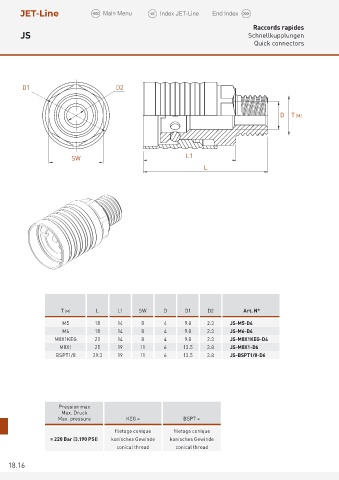

Page 982 - 25-053 APPLITEC catalogue 2025.indb

JET-Line Main Menu Index JET-Line End Index

Raccords rapides
JS Schnellkupplungen
Quick connectors

D1 D2

D T (M)

SW L1
L

T (M) L L 1 S W D D 1 D 2 Art. N°
M5 18 14 8 4 9.8 2.3 JS-M5-D4
M6 18 14 8 4 9.8 2.3 JS-M6-D4
M8X1KEG 20 14 8 4 9.8 2.3 JS-M8X1KEG-D4
M8X1 25 19 11 6 13.5 3.8 JS-M8X1-D6
BSPT1/8 29.3 19 11 6 13.5 3.8 JS-BSPT1/8-D6

Pression max
Max. Druck
Max. pressure KEG = BSPT =
filetage conique filetage conique
= 220 Bar (3.190 PSI) konisches Gewinde konisches Gewinde
conical thread conical thread

18.16
