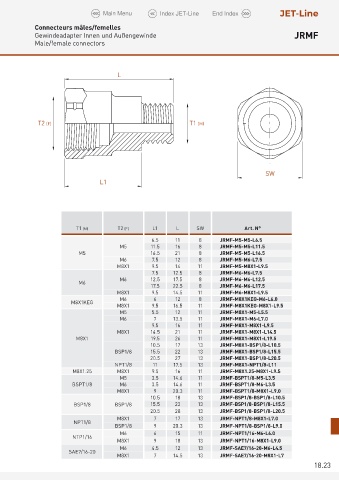

Connecteurs mâles/femelles
Gewindeadapter Innen und Außengewinde JRMF
Male/female connectors

L

T2 (F) T1 (M)

SW
L1

T1 (M) T2 (F) L1 L SW Art. N°
6.5 11 8 JRMF-M5-M5-L6.5
M5 11.5 16 8 JRMF-M5-M5-L11.5
M5 16.5 21 8 JRMF-M5-M5-L16.5
M6 7.5 12 8 JRMF-M5-M6-L7.5
M8X1 9.5 14 11 JRMF-M5-M8X1-L9.5
7.5 12.5 8 JRMF-M6-M6-L7.5
M6 M6 12.5 17.5 8 JRMF-M6-M6-L12.5
17.5 22.5 8 JRMF-M6-M6-L17.5
M8X1 9.5 14.5 11 JRMF-M6-M8X1-L9.5
M8X1KEG M 6 6 1 2 8 JRMF-M8X1KEG-M6-L6.0
M8X1 9.5 16.5 11 JRMF-M8X1KEG-M8X1-L9.5
M5 5.5 12 11 JRMF-M8X1-M5-L5.5
M6 7 13.5 11 JRMF-M8X1-M6-L7.0
9.5 16 11 JRMF-M8X1-M8X1-L9.5
M8X1 14.5 21 11 JRMF-M8X1-M8X1-L14.5
M8X1 19.5 26 11 JRMF-M8X1-M8X1-L19.5
10.5 17 13 JRMF-M8X1-BSP1/8-L10.5
BSP1/8 15.5 22 13 JRMF-M8X1-BSP1/8-L15.5
20.5 27 13 JRMF-M8X1-BSP1/8-L20.5
NPT1/8 11 17.5 13 JRMF-M8X1-NPT1/8-L11
M8X1.25 M8X1 9.5 16 11 JRMF-M8X1.25-M8X1-L9.5
M5 3.5 14.6 11 JRMF-BSPT1/8-M5-L3.5
BSPT1/8 M6 3.5 14.6 11 JRMF-BSPT1/8-M6-L3.5
M8X1 9 20.3 11 JRMF-BSPT1/8-M8X1-L9.0
10.5 18 13 JRMF-BSP1/8-BSP1/8-L10.5
BSP1/8 BSP1/8 15.5 23 13 JRMF-BSP1/8-BSP1/8-L15.5
20.5 28 13 JRMF-BSP1/8-BSP1/8-L20.5
M8X1 7 17 13 JRMF-NPT1/8-M8X1-L7.0
NPT1/8
BSP1/8 9 20.3 13 JRMF-NPT1/8-BSP1/8-L9.0
M6 6 15 11 JRMF-NPT1/16-M6-L6.0
NTP1/16
M8X1 9 18 13 JRMF-NPT1/16-M8X1-L9.0
M6 4.5 12 13 JRMF-SAE7/16-20-M6-L4.5
SAE7/16-20
M8X1 7 14.5 13 JRMF-SAE7/16-20-M8X1-L7
