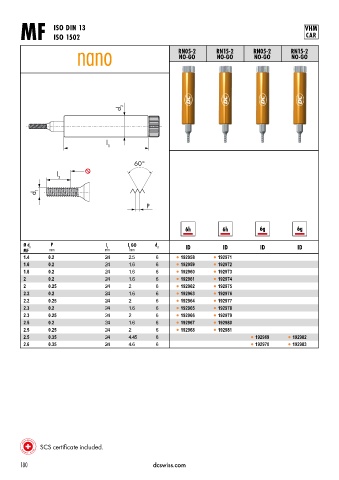

Page 183 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 13 VHM
MF ISO 1502 CAR

RN05-2 RN15-2 RN05-2 RN15-2
NO-GO NO-GO NO-GO NO-GO

d 2

l
1

l
2

d 1

P

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
MF mm mm mm
1.4 0.2 24 2.5 6 l 192958 l 192971
1.6 0.2 24 1.6 6 l 192959 l 192972
1.8 0.2 24 1.6 6 l 192960 l 192973
2 0.2 24 1.6 6 l 192961 l 192974
2 0.25 24 2 6 l 192962 l 192975
2.2 0.2 24 1.6 6 l 192963 l 192976
2.2 0.25 24 2 6 l 192964 l 192977
2.3 0.2 24 1.6 6 l 192965 l 192978
2.3 0.25 24 2 6 l 192966 l 192979
2.5 0.2 24 1.6 6 l 192967 l 192980
2.5 0.25 24 2 6 l 192968 l 192981
2.5 0.35 24 4.45 6 l 192969 l 192982
2.6 0.35 24 4.6 6 l 192970 l 192983

SCS certificate included.

180 dcswiss.com
