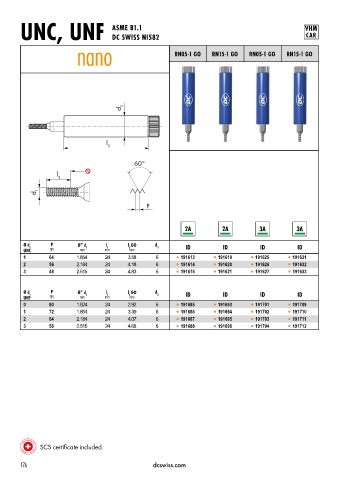

P. 179
ASME B1.1 VHM
UNC, UNF DC SWISS NI582 CAR
RN05-1 GO RN15-1 GO RN05-1 GO RN15-1 GO
d 2
l
1
l
2
d 1
P
2A 2A
Ø d 1 P Ø” d 1 l 1 l GO d 2 ID ID ID ID
2
UNC TPI mm mm mm
1 64 1.854 24 3.58 6 l 191613 l 191619 l 191625 l 191631
2 56 2.184 24 4.18 6 l 191614 l 191620 l 191626 l 191632
3 48 2.515 24 4.83 6 l 191615 l 191621 l 191627 l 191633
Ø d 1 P Ø” d 1 l 1 l GO d 2 ID ID ID ID
2
UNF TPI mm mm mm
0 80 1.524 24 2.92 6 l 191685 l 191693 l 191701 l 191709
1 72 1.854 24 3.49 6 l 191686 l 191694 l 191702 l 191710
2 64 2.184 24 4.07 6 l 191687 l 191695 l 191703 l 191711
3 56 2.515 24 4.68 6 l 191688 l 191696 l 191704 l 191712
SCS certificate included.
176 dcswiss.com
