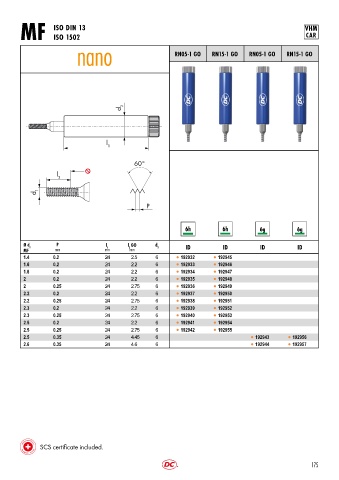

Page 178 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 13 VHM
MF ISO 1502 CAR

RN05-1 GO RN15-1 GO RN05-1 GO RN15-1 GO

d 2

l
1

l
2

d 1

P

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
MF mm mm mm
1.4 0.2 24 2.5 6 l 192932 l 192945
1.6 0.2 24 2.2 6 l 192933 l 192946
1.8 0.2 24 2.2 6 l 192934 l 192947
2 0.2 24 2.2 6 l 192935 l 192948
2 0.25 24 2.75 6 l 192936 l 192949
2.2 0.2 24 2.2 6 l 192937 l 192950
2.2 0.25 24 2.75 6 l 192938 l 192951
2.3 0.2 24 2.2 6 l 192939 l 192952
2.3 0.25 24 2.75 6 l 192940 l 192953
2.5 0.2 24 2.2 6 l 192941 l 192954
2.5 0.25 24 2.75 6 l 192942 l 192955
2.5 0.35 24 4.45 6 l 192943 l 192956
2.6 0.35 24 4.6 6 l 192944 l 192957

SCS certificate included.
