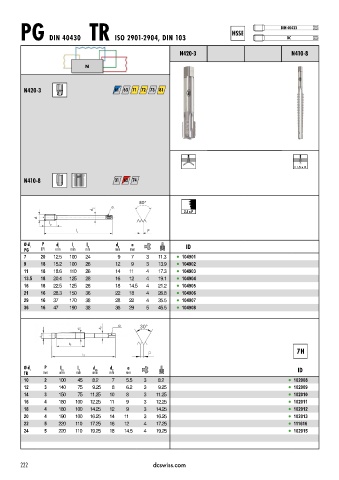

Page 225 - DC_SWISS(Catalogue_TM_ES-EN)

DIN 40433
HSSE
PG DIN 40430 TR ISO 2901-2904, DIN 103 DC

N420 3 N410-8

N

N420-3 61 63 71 72 73 81

< 1.5 x D

N410-8 31 74

a
d 2 2.5 x P
d 1
l
2
l P
1
Ø d 1 P d 1 l 1 l 2 d 2 a ID
PG TPI mm mm mm mm mm
7 20 12.5 100 24 9 7 3 11.3 l 104901
9 18 15.2 100 26 12 9 3 13.9 l 104902
11 18 18.6 110 26 14 11 4 17.3 l 104903
13.5 18 20.4 125 28 16 12 4 19.1 l 104904
16 18 22.5 125 28 18 14.5 4 21.2 l 104905
21 16 28.3 150 36 22 18 4 26.8 l 104906
29 16 37 170 38 28 22 4 35.5 l 104907
36 16 47 190 38 36 29 5 45.5 l 104908

Ø d 1 P l 11 l 2 d 10 d 2 a ID
TR mm mm mm mm mm mm
10 2 100 45 8.2 7 5.5 3 8.2 l 102008
12 3 140 75 9.25 8 6.2 3 9.25 l 102009
14 3 150 75 11.25 10 8 3 11.25 l 102010
16 4 180 100 12.25 11 9 3 12.25 l 102011
18 4 180 100 14.25 12 9 3 14.25 l 102012
20 4 190 100 16.25 14 11 3 16.25 l 102013
22 5 220 110 17.25 16 12 4 17.25 l 111616
24 5 220 110 19.25 18 14.5 4 19.25 l 102015
