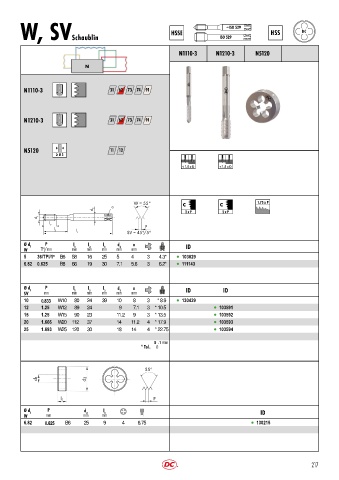

Page 220 - DC_SWISS(Catalogue_TM_ES-EN)

~ ISO 529
HSSE HSS DC
W, SVSchaublin ISO 529

N1110 3 N1210 3 N5120

N

N1110-3 31 62 73 74 91

N1210-3 31 62 73 74 91

N5120 11 12
≥ Ø 3

< 1.5 x D < 1.5 x D

W = 55° C C 1.75 x P
a
d 2
2 x P 2 x P 1.5 x D 1
d 1
l
2 P
l
3 l
1 SV = 45°/5°
Ø d 1 P l 1 l 2 l 3 d 2 a ID
W TPI/mm mm mm mm mm mm
5 36/TPI/1’’ B6 58 16 25 5 4 3 4.3* l 103029
6.82 0.625 B8 66 19 30 7.1 5.6 3 6.2* l 111143

Ø d 1 P l 1 l 2 l 3 d 2 a ID ID
SV mm mm mm mm mm mm
10 0.833 W 10 80 24 39 10 8 3 * 8.9 l 130429
12 1.25 W 12 89 24 9 7.1 3 * 10.5 l 103591
15 1.25 W 15 90 23 11.2 9 3 * 13.5 l 103592
20 1.666 W 20 112 37 14 11.2 4 * 17.9 l 103593
25 1.693 W 25 120 30 18 14 4 * 22.75 l 103594

+0 .1 m m
* Tol. 0

P
Ø d 1 P d 2 l 1 ID
W mm mm mm
6.82 0.625 B6 25 9 4 6.75 l 130215

217
