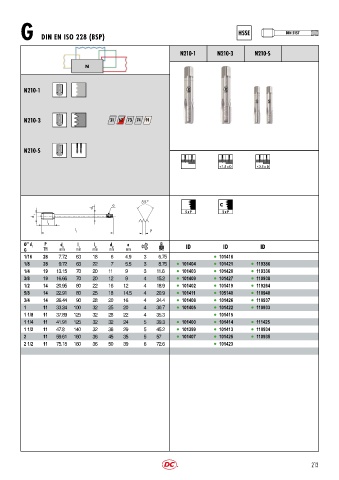

Page 216 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 5157
G DIN EN ISO 228 (BSP)

N210 1 N210 3 N210 S

N

N210-1

N210-3 31 62 73 74 91

N210-S

< 1.5 x D < 2.5 x D

a C
d 2
5 x P 2 x P
d 1
l 2
l P
1
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID ID
G TPI mm mm mm mm mm
1/16 28 7.72 63 18 6 4.9 3 6.75 l 101418
1/8 28 9.72 63 22 7 5.5 3 8.75 l 101404 l 101421 l 119386
1/4 19 13.15 70 20 11 9 3 11.6 l 101403 l 101420 l 119336
3/8 19 16.66 70 20 12 9 4 15.2 l 101409 l 101427 l 110938
1/2 14 20.95 80 22 16 12 4 18.9 l 101402 l 101419 l 119264
5/8 14 22.91 80 25 18 14.5 4 20.9 l 101411 l 105140 l 110940
3/4 14 26.44 90 28 20 16 4 24.4 l 101408 l 101426 l 110937
1 11 33.24 100 32 25 20 4 30.7 l 101405 l 101422 l 110933
1 1/8 11 37.89 125 32 28 22 4 35.3 l 101415
1 1/4 11 41.91 125 32 32 24 5 39.3 l 101400 l 101414 l 111425
1 1/2 11 47.8 140 32 36 29 5 45.2 l 101399 l 101413 l 110934
2 11 59.61 160 36 45 35 5 57 l 101407 l 101425 l 110935
2 1/2 11 75.18 160 36 50 39 6 72.6 l 101423
