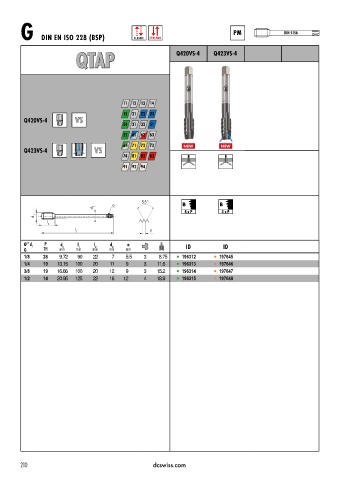

P. 213
PM DIN 5156
G DIN EN ISO 228 (BSP) CLASSIC SYNCHRO
QTAP Q420VS-4 Q423VS-4
11 12 13 14
15 21 22 23
Q420VS-4 VS
24 31 32 51
52 61 62 63
NEW
NEW
Q423VS-4 VS 71 72 73 NEW NEW
74 81 82 83
91 92 94
a B B
d 2
4 x P 4 x P
d 1
l 2
l P
1
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID
G TPI mm mm mm mm mm
1/8 28 9.72 90 22 7 5.5 3 8.75 l 196312 l 197645
1/4 19 13.15 100 20 11 9 3 11.6 l 196313 l 197646
3/8 19 16.66 100 20 12 9 3 15.2 l 196314 l 197647
1/2 14 20.95 125 22 16 12 4 18.9 l 196315 l 197648
210 dcswiss.com
