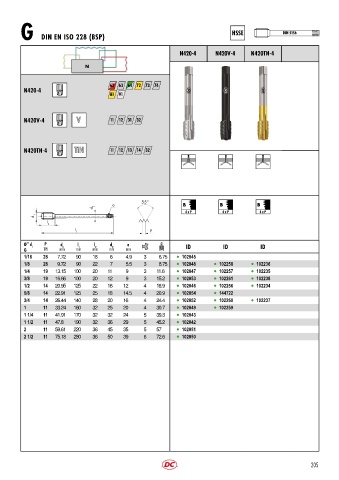

Page 208 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 5156
G DIN EN ISO 228 (BSP)

N420 4 N420V 4 N420TN 4

N

62 63 72 73 74
N420-4
81 91

N420V-4 V 11 12 31 32

N420TN 4 TiN 11 12 13 14 32

a B B B
d 2
4 x P 4 x P 4 x P
d 1
l 2
l P
1
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID ID
G TPI mm mm mm mm mm
1/16 28 7.72 90 18 6 4.9 3 6.75 l 102045
1/8 28 9.72 90 22 7 5.5 3 8.75 l 102048 l 102258 l 102236
1/4 19 13.15 100 20 11 9 3 11.6 l 102047 l 102257 l 102235
3/8 19 16.66 100 20 12 9 3 15.2 l 102053 l 102261 l 102238
1/2 14 20.95 125 22 16 12 4 18.9 l 102046 l 102256 l 102234
5/8 14 22.91 125 25 18 14.5 4 20.9 l 102054 l 144722
3/4 14 26.44 140 28 20 16 4 24.4 l 102052 l 102260 l 102237
1 11 33.24 160 32 25 20 4 30.7 l 102049 l 102259
1 1/4 11 41.91 170 32 32 24 5 39.3 l 102043
1 1/2 11 47.8 190 32 36 29 5 45.2 l 102042
2 11 59.61 220 36 45 35 5 57 l 102051
2 1/2 11 75.18 280 36 50 39 6 72.6 l 102050

205
