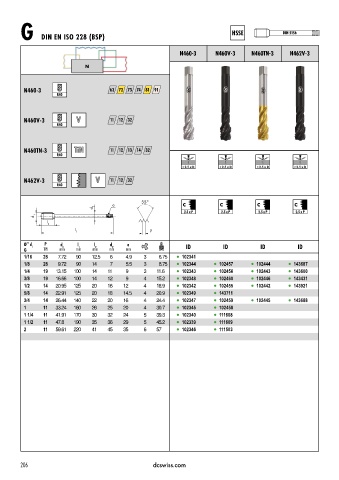

Page 209 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 5156
G DIN EN ISO 228 (BSP)

N460 3 N460V 3 N460TN 3 N462V 3

N

N460-3 63 72 73 74 81 91
R40

N460V-3 V 11 12 32
R40

N460TN-3 TiN 11 12 13 14 32
R40

< 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D

N462V-3 V 11 12 32
R40

a C C C C
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l 2
l P
1
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID ID ID
G TPI mm mm mm mm mm
1/16 28 7.72 90 12.5 6 4.9 3 6.75 l 102341
1/8 28 9.72 90 14 7 5.5 3 8.75 l 102344 l 102457 l 102444 l 143687
1/4 19 13.15 100 14 11 9 3 11.6 l 102343 l 102456 l 102443 l 143600
3/8 19 16.66 100 14 12 9 4 15.2 l 102348 l 102460 l 102446 l 143431
1/2 14 20.95 125 20 16 12 4 18.9 l 102342 l 102455 l 102442 l 143921
5/8 14 22.91 125 20 18 14.5 4 20.9 l 102349 l 143711
3/4 14 26.44 140 22 20 16 4 24.4 l 102347 l 102459 l 102445 l 143688
1 11 33.24 160 26 25 20 4 30.7 l 102345 l 102458
1 1/4 11 41.91 170 30 32 24 5 39.3 l 102340 l 111608
1 1/2 11 47.8 190 35 36 29 5 45.2 l 102339 l 111609
2 11 59.61 220 41 45 35 6 57 l 102346 l 111503
