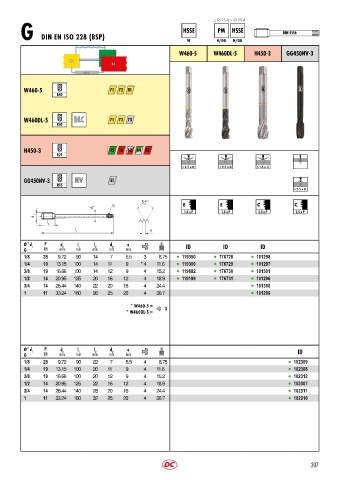

Page 210 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 25.4 > Ø 25.4
HSSE PM HSSE DIN 5156
G DIN EN ISO 228 (BSP) W H/GG H/GG

W460 5 W460DL 5 H450 3 GG450NV 3
W
H

W460-5 71 72 81
R40

W460DL-5 DLC 71 72 73
R40

H450-3 15 16 62 82
R25

< 2.5 x D < 2.5 x D < 1.5 x D

GG450NV-3 NV 31
R15
< 2.5 x D

a C C
d 2
2.5 x P 2.5 x P
d 1
l 2
l P
1
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID ID
G TPI mm mm mm mm mm
1/8 28 9.72 90 14 7 5.5 3 8.75 l 119350 l 176728 l 101298
1/4 19 13.15 100 14 11 9 * 4 11.6 l 119300 l 176729 l 101297
3/8 19 16.66 100 14 12 9 4 15.2 l 119682 l 176730 l 101301
1/2 14 20.95 125 20 16 12 4 18.9 l 119199 l 176731 l 101296
3/4 14 26.44 140 22 20 16 4 24.4 l 101300
1 11 33.24 160 26 25 20 4 30.7 l 101299

* W460-5 = 3
3
* W460DL-5 = 3

Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID
G TPI mm mm mm mm mm
1/8 28 9.72 90 22 7 5.5 4 8.75 l 102309
1/4 19 13.15 100 20 11 9 4 11.6 l 102308
3/8 19 16.66 100 20 12 9 4 15.2 l 102312
1/2 14 20.95 125 22 16 12 4 18.9 l 102307
3/4 14 26.44 140 28 20 16 4 24.4 l 102311
1 11 33.24 160 32 25 20 4 30.7 l 102310

207
