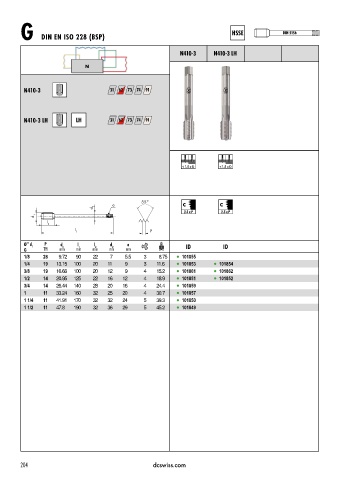

Page 207 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 5156
G DIN EN ISO 228 (BSP)

N410 3 N410 3 LH

N

N410-3 31 62 73 74 91

N410-3 LH LH 31 62 73 74 91

< 1.5 x D < 1.5 x D

a C C
d 2
2.5 x P 2.5 x P
d 1
l 2
l P
1
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID
G TPI mm mm mm mm mm
1/8 28 9.72 90 22 7 5.5 3 8.75 l 101855
1/4 19 13.15 100 20 11 9 3 11.6 l 101853 l 101854
3/8 19 16.66 100 20 12 9 4 15.2 l 101861 l 101862
1/2 14 20.95 125 22 16 12 4 18.9 l 101851 l 101852
3/4 14 26.44 140 28 20 16 4 24.4 l 101859
1 11 33.24 160 32 25 20 4 30.7 l 101857
1 1/4 11 41.91 170 32 32 24 5 39.3 l 101850
1 1/2 11 47.8 190 32 36 29 5 45.2 l 101849

204 dcswiss.com
