~ ISO 529
HSS

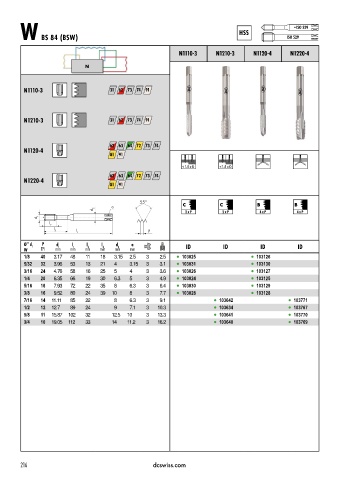

W BS 84 (BSW) ISO 529

N1110 3 N1210 3 N1120 4 N1220 4

N

N1110-3 31 62 73 74 91

N1210-3 31 62 73 74 91

62 63 72 73 74
N1120-4
81 91

< 1.5 x D < 1.5 x D
62 63 72 73 74
N1220-4
81 91

C C B B
a
d 2
2 x P 2 x P 4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
W TPI mm mm mm mm mm mm
1/8 40 3.17 48 11 18 3.15 2.5 3 2.5 l 103025 l 103126
5/32 32 3.96 53 13 21 4 3.15 3 3.1 l 103031 l 103130
3/16 24 4.76 58 16 25 5 4 3 3.6 l 103026 l 103127
1/4 20 6.35 66 19 30 6.3 5 3 4.9 l 103024 l 103125
5/16 18 7.93 72 22 35 8 6.3 3 6.4 l 103030 l 103129
3/8 16 9.52 80 24 39 10 8 3 7.7 l 103028 l 103128
7/16 14 11.11 85 22 8 6.3 3 9.1 l 103642 l 103771
1/2 12 12.7 89 24 9 7.1 3 10.3 l 103634 l 103767
5/8 11 15.87 102 32 12.5 10 3 13.3 l 103641 l 103770
3/4 10 19.05 112 33 14 11.2 3 16.2 l 103640 l 103769
