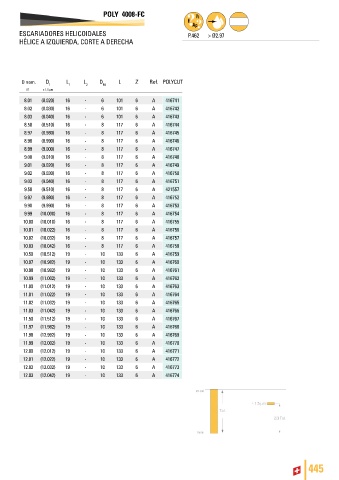

Page 447 - DC_SWISS(Catalogue_TM_ES-EN)

POLY 4008-FC

ESCARIADORES HELICOIDALES P.462 > Ø2.97
HÉLICE A IZQUIERDA, CORTE A DERECHA

D nom. D 1 L 1 L 2 D h5 L Z Ref. POLYCUT
H7 ± 1.5 μm
8.01 (8.020) 16 - 6 101 6 A 416741
8.02 (8.030) 16 - 6 101 6 A 416742
8.03 (8.040) 16 - 6 101 6 A 416743
8.50 (8.510) 16 - 8 117 6 A 416744
8.97 (8.980) 16 - 8 117 6 A 416745
8.98 (8.990) 16 - 8 117 6 A 416746
8.99 (9.000) 16 - 8 117 6 A 416747
9.00 (9.010) 16 - 8 117 6 A 416748
9.01 (9.020) 16 - 8 117 6 A 416749
9.02 (9.030) 16 - 8 117 6 A 416750
9.03 (9.040) 16 - 8 117 6 A 416751
9.50 (9.510) 16 - 8 117 6 A 421557
9.97 (9.980) 16 - 8 117 6 A 416752
9.98 (9.990) 16 - 8 117 6 A 416753
9.99 (10.000) 16 - 8 117 6 A 416754
10.00 (10.010) 16 - 8 117 6 A 416755
10.01 (10.022) 16 - 8 117 6 A 416756
10.02 (10.032) 16 - 8 117 6 A 416757
10.03 (10.042) 16 - 8 117 6 A 416758
10.50 (10.512) 19 - 10 133 6 A 416759
10.97 (10.982) 19 - 10 133 6 A 416760
10.98 (10.992) 19 - 10 133 6 A 416761
10.99 (11.002) 19 - 10 133 6 A 416762
11.00 (11.012) 19 - 10 133 6 A 416763
11.01 (11.022) 19 - 10 133 6 A 416764
11.02 (11.032) 19 - 10 133 6 A 416765
11.03 (11.042) 19 - 10 133 6 A 416766
11.50 (11.512) 19 - 10 133 6 A 416767
11.97 (11.982) 19 - 10 133 6 A 416768
11.98 (12.992) 19 - 10 133 6 A 416769
11.99 (12.002) 19 - 10 133 6 A 416770
12.00 (12.012) 19 - 10 133 6 A 416771
12.01 (12.022) 19 - 10 133 6 A 416772
12.02 (12.032) 19 - 10 133 6 A 416773
12.03 (12.042) 19 - 10 133 6 A 416774

445
