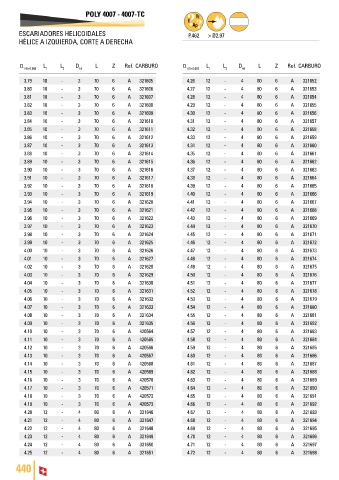

P. 442
POLY 4007 - 4007-TC
ESCARIADORES HELICOIDALES P.462 > Ø2.97
HÉLICE A IZQUIERDA, CORTE A DERECHA
D 1 0/+0.003 L 1 L 2 D h5 L Z Ref. CARBURO D 1 0/+0.003 L 1 L 2 D h5 L Z Ref. CARBURO
3.79 10 - 3 70 6 A 321605 4.26 12 - 4 80 6 A 321652
3.80 10 - 3 70 6 A 321606 4.27 12 - 4 80 6 A 321653
3.81 10 - 3 70 6 A 321607 4.28 12 - 4 80 6 A 321654
3.82 10 - 3 70 6 A 321608 4.29 12 - 4 80 6 A 321655
3.83 10 - 3 70 6 A 321609 4.30 12 - 4 80 6 A 321656
3.84 10 - 3 70 6 A 321610 4.31 12 - 4 80 6 A 321657
3.85 10 - 3 70 6 A 321611 4.32 12 - 4 80 6 A 321658
3.86 10 - 3 70 6 A 321612 4.33 12 - 4 80 6 A 321659
3.87 10 - 3 70 6 A 321613 4.34 12 - 4 80 6 A 321660
3.88 10 - 3 70 6 A 321614 4.35 12 - 4 80 6 A 321661
3.89 10 - 3 70 6 A 321615 4.36 12 - 4 80 6 A 321662
3.90 10 - 3 70 6 A 321616 4.37 12 - 4 80 6 A 321663
3.91 10 - 3 70 6 A 321617 4.38 12 - 4 80 6 A 321664
3.92 10 - 3 70 6 A 321618 4.39 12 - 4 80 6 A 321665
3.93 10 - 3 70 6 A 321619 4.40 12 - 4 80 6 A 321666
3.94 10 - 3 70 6 A 321620 4.41 12 - 4 80 6 A 321667
3.95 10 - 3 70 6 A 321621 4.42 12 - 4 80 6 A 321668
3.96 10 - 3 70 6 A 321622 4.43 12 - 4 80 6 A 321669
3.97 10 - 3 70 6 A 321623 4.44 12 - 4 80 6 A 321670
3.98 10 - 3 70 6 A 321624 4.45 12 - 4 80 6 A 321671
3.99 10 - 3 70 6 A 321625 4.46 12 - 4 80 6 A 321672
4.00 10 - 3 70 6 A 321626 4.47 12 - 4 80 6 A 321673
4.01 10 - 3 70 6 A 321627 4.48 12 - 4 80 6 A 321674
4.02 10 - 3 70 6 A 321628 4.49 12 - 4 80 6 A 321675
4.03 10 - 3 70 6 A 321629 4.50 12 - 4 80 6 A 321676
4.04 10 - 3 70 6 A 321630 4.51 12 - 4 80 6 A 321677
4.05 10 - 3 70 6 A 321631 4.52 12 - 4 80 6 A 321678
4.06 10 - 3 70 6 A 321632 4.53 12 - 4 80 6 A 321679
4.07 10 - 3 70 6 A 321633 4.54 12 - 4 80 6 A 321680
4.08 10 - 3 70 6 A 321634 4.55 12 - 4 80 6 A 321681
4.09 10 - 3 70 6 A 321635 4.56 12 - 4 80 6 A 321682
4.10 10 - 3 70 6 A 420564 4.57 12 - 4 80 6 A 321683
4.11 10 - 3 70 6 A 420565 4.58 12 - 4 80 6 A 321684
4.12 10 - 3 70 6 A 420566 4.59 12 - 4 80 6 A 321685
4.13 10 - 3 70 6 A 420567 4.60 12 - 4 80 6 A 321686
4.14 10 - 3 70 6 A 420568 4.61 12 - 4 80 6 A 321687
4.15 10 - 3 70 6 A 420569 4.62 12 - 4 80 6 A 321688
4.16 10 - 3 70 6 A 420570 4.63 12 - 4 80 6 A 321689
4.17 10 - 3 70 6 A 420571 4.64 12 - 4 80 6 A 321690
4.18 10 - 3 70 6 A 420572 4.65 12 - 4 80 6 A 321691
4.19 10 - 3 70 6 A 420573 4.66 12 - 4 80 6 A 321692
4.20 12 - 4 80 6 A 321646 4.67 12 - 4 80 6 A 321693
4.21 12 - 4 80 6 A 321647 4.68 12 - 4 80 6 A 321694
4.22 12 - 4 80 6 A 321648 4.69 12 - 4 80 6 A 321695
4.23 12 - 4 80 6 A 321649 4.70 12 - 4 80 6 A 321696
4.24 12 - 4 80 6 A 321650 4.71 12 - 4 80 6 A 321697
4.25 12 - 4 80 6 A 321651 4.72 12 - 4 80 6 A 321698
