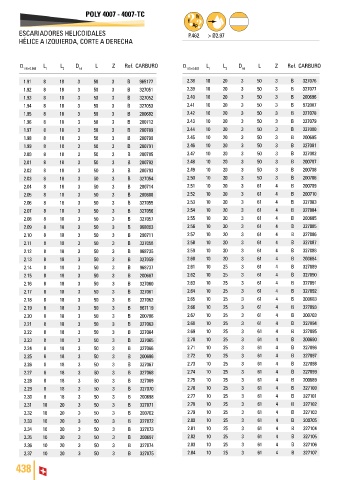

POLY 4007 - 4007-TC

ESCARIADORES HELICOIDALES P.462 > Ø2.97
HÉLICE A IZQUIERDA, CORTE A DERECHA

D 1 0/+0.003 L 1 L 2 D h5 L Z Ref. CARBURO D 1 0/+0.003 L 1 L 2 D h5 L Z Ref. CARBURO

1.91 8 18 3 50 3 B 965177 2.38 10 20 3 50 3 B 327076
1.92 8 18 3 50 3 B 327051 2.39 10 20 3 50 3 B 327077
1.93 8 18 3 50 3 B 327052 2.40 10 20 3 50 3 B 200696
1.94 8 18 3 50 3 B 327053 2.41 10 20 3 50 3 B 972007
1.95 8 18 3 50 3 B 200682 2.42 10 20 3 50 3 B 327078
1.96 8 18 3 50 3 B 200712 2.43 10 20 3 50 3 B 327079
1.97 8 18 3 50 3 B 200789 2.44 10 20 3 50 3 B 327080
1.98 8 18 3 50 3 B 200790 2.45 10 20 3 50 3 B 200695
1.99 8 18 3 50 3 B 200791 2.46 10 20 3 50 3 B 327081
2.00 8 18 3 50 3 B 200785 2.47 10 20 3 50 3 B 327082
2.01 8 18 3 50 3 B 200792 2.48 10 20 3 50 3 B 200707
2.02 8 18 3 50 3 B 200793 2.49 10 20 3 50 3 B 200708
2.03 8 18 3 50 3 B 327054 2.50 10 20 3 50 3 B 200786
2.04 8 18 3 50 3 B 200714 2.51 10 20 3 61 4 B 200709
2.05 8 18 3 50 3 B 200688 2.52 10 20 3 61 4 B 200710
2.06 8 18 3 50 3 B 327055 2.53 10 20 3 61 4 B 327083
2.07 8 18 3 50 3 B 327056 2.54 10 20 3 61 4 B 327084
2.08 8 18 3 50 3 B 327057 2.55 10 20 3 61 4 B 200685
2.09 8 18 3 50 3 B 968093 2.56 10 20 3 61 4 B 327085
2.10 8 18 3 50 3 B 200711 2.57 10 20 3 61 4 B 327086
2.11 8 18 3 50 3 B 327058 2.58 10 20 3 61 4 B 327087
2.12 8 18 3 50 3 B 968735 2.59 10 20 3 61 4 B 327088
2.13 8 18 3 50 3 B 327059 2.60 10 20 3 61 4 B 200684
2.14 8 18 3 50 3 B 968737 2.61 10 25 3 61 4 B 327089
2.15 8 18 3 50 3 B 200687 2.62 10 25 3 61 4 B 327090
2.16 8 18 3 50 3 B 327060 2.63 10 25 3 61 4 B 327091
2.17 8 18 3 50 3 B 327061 2.64 10 25 3 61 4 B 327092
2.18 8 18 3 50 3 B 327062 2.65 10 25 3 61 4 B 200683
2.19 8 18 3 50 3 B 967119 2.66 10 25 3 61 4 B 327093
2.20 8 18 3 50 3 B 200706 2.67 10 25 3 61 4 B 200703
2.21 8 18 3 50 3 B 327063 2.68 10 25 3 61 4 B 327094
2.22 8 18 3 50 3 B 327064 2.69 10 25 3 61 4 B 327095
2.23 8 18 3 50 3 B 327065 2.70 10 25 3 61 4 B 200690
2.24 8 18 3 50 3 B 327066 2.71 10 25 3 61 4 B 327096
2.25 8 18 3 50 3 B 200686 2.72 10 25 3 61 4 B 327097
2.26 8 18 3 50 3 B 327067 2.73 10 25 3 61 4 B 327098
2.27 8 18 3 50 3 B 327068 2.74 10 25 3 61 4 B 327099
2.28 8 18 3 50 3 B 327069 2.75 10 25 3 61 4 B 200689
2.29 8 18 3 50 3 B 327070 2.76 10 25 3 61 4 B 327100
2.30 8 18 3 50 3 B 200698 2.77 10 25 3 61 4 B 327101
2.31 10 20 3 50 3 B 327071 2.78 10 25 3 61 4 B 327102
2.32 10 20 3 50 3 B 200702 2.79 10 25 3 61 4 B 327103
2.33 10 20 3 50 3 B 327072 2.80 10 25 3 61 4 B 200705
2.34 10 20 3 50 3 B 327073 2.81 10 25 3 61 4 B 327104
2.35 10 20 3 50 3 B 200697 2.82 10 25 3 61 4 B 327105
2.36 10 20 3 50 3 B 327074 2.83 10 25 3 61 4 B 327106
2.37 10 20 3 50 3 B 327075 2.84 10 25 3 61 4 B 327107
438
