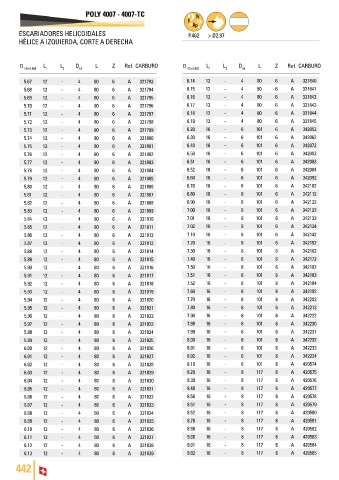

Page 444 - DC_SWISS(Catalogue_TM_ES-EN)

POLY 4007 - 4007-TC

ESCARIADORES HELICOIDALES P.462 > Ø2.97
HÉLICE A IZQUIERDA, CORTE A DERECHA

D 1 0/+0.003 L 1 L 2 D h5 L Z Ref. CARBURO D 1 0/+0.003 L 1 L 2 D h5 L Z Ref. CARBURO

5.67 12 - 4 80 6 A 321793 6.14 12 - 4 80 6 A 321840
5.68 12 - 4 80 6 A 321794 6.15 12 - 4 80 6 A 321841
5.69 12 - 4 80 6 A 321795 6.16 12 - 4 80 6 A 321842
5.70 12 - 4 80 6 A 321796 6.17 12 - 4 80 6 A 321843
5.71 12 - 4 80 6 A 321797 6.18 12 - 4 80 6 A 321844
5.72 12 - 4 80 6 A 321798 6.19 12 - 4 80 6 A 321845
5.73 12 - 4 80 6 A 321799 6.20 16 - 6 101 6 A 342052
5.74 12 - 4 80 6 A 321800 6.30 16 - 6 101 6 A 342062
5.75 12 - 4 80 6 A 321801 6.40 16 - 6 101 6 A 342072
5.76 12 - 4 80 6 A 321802 6.50 16 - 6 101 6 A 342082
5.77 12 - 4 80 6 A 321803 6.51 16 - 6 101 6 A 342083
5.78 12 - 4 80 6 A 321804 6.52 16 - 6 101 6 A 342084
5.79 12 - 4 80 6 A 321805 6.60 16 - 6 101 6 A 342092
5.80 12 - 4 80 6 A 321806 6.70 16 - 6 101 6 A 342102
5.81 12 - 4 80 6 A 321807 6.80 16 - 6 101 6 A 342112
5.82 12 - 4 80 6 A 321808 6.90 16 - 6 101 6 A 342122
5.83 12 - 4 80 6 A 321809 7.00 16 - 6 101 6 A 342132
5.84 12 - 4 80 6 A 321810 7.01 16 - 6 101 6 A 342133
5.85 12 - 4 80 6 A 321811 7.02 16 - 6 101 6 A 342134
5.86 12 - 4 80 6 A 321812 7.10 16 - 6 101 6 A 342142
5.87 12 - 4 80 6 A 321813 7.20 16 - 6 101 6 A 342152
5.88 12 - 4 80 6 A 321814 7.30 16 - 6 101 6 A 342162
5.89 12 - 4 80 6 A 321815 7.40 16 - 6 101 6 A 342172
5.90 12 - 4 80 6 A 321816 7.50 16 - 6 101 6 A 342182
5.91 12 - 4 80 6 A 321817 7.51 16 - 6 101 6 A 342183
5.92 12 - 4 80 6 A 321818 7.52 16 - 6 101 6 A 342184
5.93 12 - 4 80 6 A 321819 7.60 16 - 6 101 6 A 342192
5.94 12 - 4 80 6 A 321820 7.70 16 - 6 101 6 A 342202
5.95 12 - 4 80 6 A 321821 7.80 16 - 6 101 6 A 342212
5.96 12 - 4 80 6 A 321822 7.90 16 - 6 101 6 A 342222
5.97 12 - 4 80 6 A 321823 7.98 16 - 6 101 6 A 342230
5.98 12 - 4 80 6 A 321824 7.99 16 - 6 101 6 A 342231
5.99 12 - 4 80 6 A 321825 8.00 16 - 6 101 6 A 342232
6.00 12 - 4 80 6 A 321826 8.01 16 - 6 101 6 A 342233
6.01 12 - 4 80 6 A 321827 8.02 16 - 6 101 6 A 342234
6.02 12 - 4 80 6 A 321828 8.10 16 - 6 101 6 A 420574
6.03 12 - 4 80 6 A 321829 8.20 16 - 8 117 6 A 420575
6.04 12 - 4 80 6 A 321830 8.30 16 - 8 117 6 A 420576
6.05 12 - 4 80 6 A 321831 8.40 16 - 8 117 6 A 420577
6.06 12 - 4 80 6 A 321832 8.50 16 - 8 117 6 A 420578
6.07 12 - 4 80 6 A 321833 8.51 16 - 8 117 6 A 420579
6.08 12 - 4 80 6 A 321834 8.52 16 - 8 117 6 A 420580
6.09 12 - 4 80 6 A 321835 8.70 16 - 8 117 6 A 420581
6.10 12 - 4 80 6 A 321836 8.90 16 - 8 117 6 A 420582
6.11 12 - 4 80 6 A 321837 9.00 16 - 8 117 6 A 420583
6.12 12 - 4 80 6 A 321838 9.01 16 - 8 117 6 A 420584
6.13 12 - 4 80 6 A 321839 9.02 16 - 8 117 6 A 420585
442
