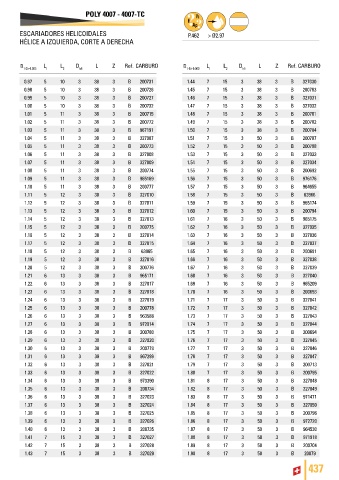

Page 439 - DC_SWISS(Catalogue_TM_ES-EN)

POLY 4007 - 4007-TC

ESCARIADORES HELICOIDALES P.462 > Ø2.97
HÉLICE A IZQUIERDA, CORTE A DERECHA

D 1 0/+0.003 L 1 L 2 D h5 L Z Ref. CARBURO D 1 0/+0.003 L 1 L 2 D h5 L Z Ref. CARBURO

0.97 5 10 3 38 3 B 200731 1.44 7 15 3 38 3 B 327030
0.98 5 10 3 38 3 B 200726 1.45 7 15 3 38 3 B 200783
0.99 5 10 3 38 3 B 200727 1.46 7 15 3 38 3 B 327031
1.00 5 10 3 38 3 B 200732 1.47 7 15 3 38 3 B 327032
1.01 5 11 3 38 3 B 200715 1.48 7 15 3 38 3 B 200781
1.02 5 11 3 38 3 B 200772 1.49 7 15 3 38 3 B 200782
1.03 5 11 3 38 3 B 967191 1.50 7 15 3 38 3 B 200784
1.04 5 11 3 38 3 B 327007 1.51 7 15 3 50 3 B 200787
1.05 5 11 3 38 3 B 200773 1.52 7 15 3 50 3 B 200788
1.06 5 11 3 38 3 B 327008 1.53 7 15 3 50 3 B 327033
1.07 5 11 3 38 3 B 327009 1.54 7 15 3 50 3 B 327034
1.08 5 11 3 38 3 B 200774 1.55 7 15 3 50 3 B 200692
1.09 5 11 3 38 3 B 965169 1.56 7 15 3 50 3 B 976176
1.10 5 11 3 38 3 B 200777 1.57 7 15 3 50 3 B 964655
1.11 5 12 3 38 3 B 327010 1.58 7 15 3 50 3 B 63966
1.12 5 12 3 38 3 B 327011 1.59 7 15 3 50 3 B 965174
1.13 5 12 3 38 3 B 327012 1.60 7 15 3 50 3 B 200794
1.14 5 12 3 38 3 B 327013 1.61 7 16 3 50 3 B 965175
1.15 5 12 3 38 3 B 200775 1.62 7 16 3 50 3 B 327035
1.16 5 12 3 38 3 B 327014 1.63 7 16 3 50 3 B 327036
1.17 5 12 3 38 3 B 327015 1.64 7 16 3 50 3 B 327037
1.18 5 12 3 38 3 B 63965 1.65 7 16 3 50 3 B 200691
1.19 5 12 3 38 3 B 327016 1.66 7 16 3 50 3 B 327038
1.20 5 12 3 38 3 B 200776 1.67 7 16 3 50 3 B 327039
1.21 6 13 3 38 3 B 965171 1.68 7 16 3 50 3 B 327040
1.22 6 13 3 38 3 B 327017 1.69 7 16 3 50 3 B 965209
1.23 6 13 3 38 3 B 327018 1.70 7 16 3 50 3 B 200693
1.24 6 13 3 38 3 B 327019 1.71 7 17 3 50 3 B 327041
1.25 6 13 3 38 3 B 200778 1.72 7 17 3 50 3 B 327042
1.26 6 13 3 38 3 B 963588 1.73 7 17 3 50 3 B 327043
1.27 6 13 3 38 3 B 972014 1.74 7 17 3 50 3 B 327044
1.28 6 13 3 38 3 B 200780 1.75 7 17 3 50 3 B 200694
1.29 6 13 3 38 3 B 327020 1.76 7 17 3 50 3 B 327045
1.30 6 13 3 38 3 B 200779 1.77 7 17 3 50 3 B 327046
1.31 6 13 3 38 3 B 967299 1.78 7 17 3 50 3 B 327047
1.32 6 13 3 38 3 B 327021 1.79 7 17 3 50 3 B 200713
1.33 6 13 3 38 3 B 327022 1.80 7 17 3 50 3 B 200795
1.34 6 13 3 38 3 B 973390 1.81 8 17 3 50 3 B 327048
1.35 6 13 3 38 3 B 200734 1.82 8 17 3 50 3 B 327049
1.36 6 13 3 38 3 B 327023 1.83 8 17 3 50 3 B 971471
1.37 6 13 3 38 3 B 327024 1.84 8 17 3 50 3 B 327050
1.38 6 13 3 38 3 B 327025 1.85 8 17 3 50 3 B 200796
1.39 6 13 3 38 3 B 327026 1.86 8 17 3 50 3 B 972720
1.40 6 13 3 38 3 B 200735 1.87 8 17 3 50 3 B 964530
1.41 7 15 3 38 3 B 327027 1.88 8 17 3 50 3 B 971918
1.42 7 15 3 38 3 B 327028 1.89 8 17 3 50 3 B 200704
1.43 7 15 3 38 3 B 327029 1.90 8 17 3 50 3 B 20079
437
