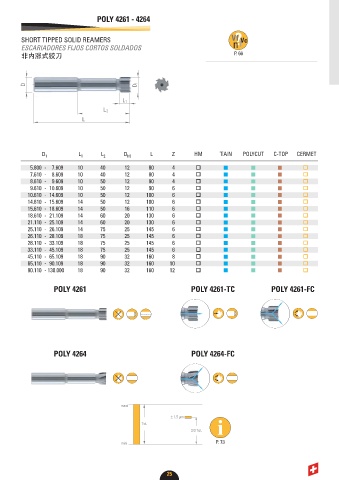

POLY 4261 - 4264

SHORT TIPPED SOLID REAMERS
ESCARIADORES FIJOS CORTOS SOLDADOS
非内涨式铰刀 P. 66

L D L
D L 1 2 h6 Z HM TiAlN POLYCUT C-TOP CERMET
1
5.800 - 7.609 10 40 12 80 4 o n n n o
7.610 - 8.609 10 40 12 80 4 o n n n o
8.610 - 9.609 10 50 12 90 4 o n n n o
9.610 - 10.609 10 50 12 90 6 o n n n o
10.610 - 14.609 10 50 12 100 6 o n n n o
14.610 - 15.609 14 50 12 100 6 o n n n o
15.610 - 18.609 14 50 16 110 6 o n n n o
18.610 - 21.109 14 60 20 130 6 o n n n o
21.110 - 25.109 14 60 20 130 6 o n n n o
25.110 - 26.109 14 75 25 145 6 o n n n o
26.110 - 28.109 18 75 25 145 6 o n n n o
28.110 - 33.109 18 75 25 145 6 o n n n o
33.110 - 45.109 18 75 25 145 6 o n n n o
45.110 - 65.109 18 90 32 160 8 o n n n o
65.110 - 90.109 18 90 32 160 10 o n n n o
90.110 - 130.000 18 90 32 160 12 o n n n o

POLY 4261 POLY 4261-TC POLY 4261-FC

POLY 4264 POLY 4264-FC

P. 73

25
