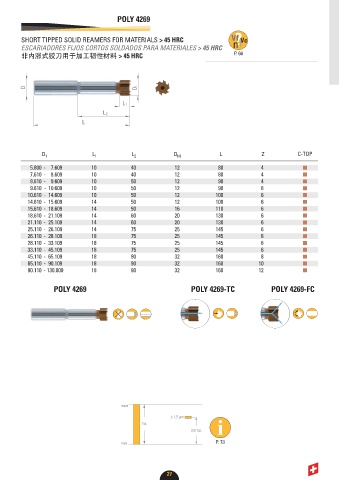

POLY 4269
SHORT TIPPED SOLID REAMERS FOR MATERIALS > 45 HRC
ESCARIADORES FIJOS CORTOS SOLDADOS PARA MATERIALES > 45 HRC
非内涨式铰刀用于加工韧性材料 > 45 HRC P. 66
L D L Z
D L 1 2 h6 C-TOP
1
5.800 - 7.609 10 40 12 80 4 n
7.610 - 8.609 10 40 12 80 4 n
8.610 - 9.609 10 50 12 90 4 n
9.610 - 10.609 10 50 12 90 6 n
10.610 - 14.609 10 50 12 100 6 n
14.610 - 15.609 14 50 12 100 6 n
15.610 - 18.609 14 50 16 110 6 n
18.610 - 21.109 14 60 20 130 6 n
21.110 - 25.109 14 60 20 130 6 n
25.110 - 26.109 14 75 25 145 6 n
26.110 - 28.109 18 75 25 145 6 n
28.110 - 33.109 18 75 25 145 6 n
33.110 - 45.109 18 75 25 145 6 n
45.110 - 65.109 18 90 32 160 8 n
65.110 - 90.109 18 90 32 160 10 n
90.110 - 130.000 18 90 32 160 12 n
POLY 4269 POLY 4269-TC POLY 4269-FC
P. 73
