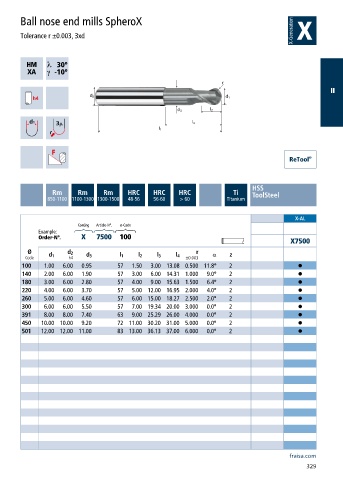

Page 331 - 21-036 APPLITEC catalogue.indb

Ball nose end mills SpheroX

Tolerance r ±0.003, 3xd

h ƍ
a ƍ

II

HSS
Rm Rm Rm HRC HRC HRC Ti ToolSteel
850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7500 100
X7500
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.003 z
100 1.00 6.00 0.95 57 1.50 3.00 13.08 0.500 11.8° 2 •
140 2.00 6.00 1.90 57 3.00 6.00 14.31 1.000 9.0° 2 •
180 3.00 6.00 2.80 57 4.00 9.00 15.63 1.500 6.4° 2 •
220 4.00 6.00 3.70 57 5.00 12.00 16.95 2.000 4.0° 2 •
260 5.00 6.00 4.60 57 6.00 15.00 18.27 2.500 2.0° 2 •
300 6.00 6.00 5.50 57 7.00 19.34 20.00 3.000 0.0° 2 •
391 8.00 8.00 7.40 63 9.00 25.29 26.00 4.000 0.0° 2 •
450 10.00 10.00 9.20 72 11.00 30.20 31.00 5.000 0.0° 2 •
501 12.00 12.00 11.00 83 13.00 36.13 37.00 6.000 0.0° 2 •
