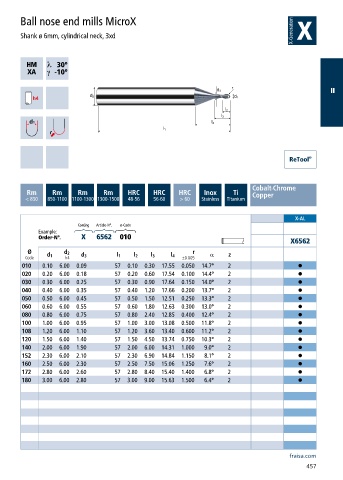

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 3xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6562 010
X6562
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
010 0.10 6.00 0.09 57 0.10 0.30 17.55 0.050 14.7° 2 •
020 0.20 6.00 0.18 57 0.20 0.60 17.54 0.100 14.4° 2 •
030 0.30 6.00 0.25 57 0.30 0.90 17.64 0.150 14.0° 2 •
040 0.40 6.00 0.35 57 0.40 1.20 17.66 0.200 13.7° 2 •
050 0.50 6.00 0.45 57 0.50 1.50 12.51 0.250 13.3° 2 •
060 0.60 6.00 0.55 57 0.60 1.80 12.63 0.300 13.0° 2 •
080 0.80 6.00 0.75 57 0.80 2.40 12.85 0.400 12.4° 2 •
100 1.00 6.00 0.95 57 1.00 3.00 13.08 0.500 11.8° 2 •
108 1.20 6.00 1.10 57 1.20 3.60 13.40 0.600 11.2° 2 •
120 1.50 6.00 1.40 57 1.50 4.50 13.74 0.750 10.3° 2 •
140 2.00 6.00 1.90 57 2.00 6.00 14.31 1.000 9.0° 2 •
152 2.30 6.00 2.10 57 2.30 6.90 14.84 1.150 8.1° 2 •
160 2.50 6.00 2.30 57 2.50 7.50 15.06 1.250 7.6° 2 •
172 2.80 6.00 2.60 57 2.80 8.40 15.40 1.400 6.8° 2 •
180 3.00 6.00 2.80 57 3.00 9.00 15.63 1.500 6.4° 2 •
