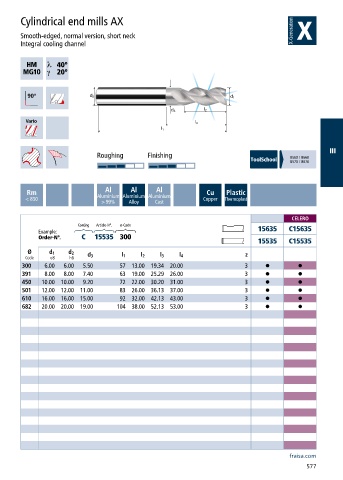

Page 579 - 21-036 APPLITEC catalogue.indb

Cylindrical end mills AX

Smooth-edged, normal version, short neck
Integral cooling channel

h ƍ
a ƍ

III
Roughing Finishing 8560 / 8660
8570 / 8670

Al
Al
Al
Rm Aluminium Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy Cast
CELERO
Coating Article-N°. ø-Code
Example: 15635 C15635
Order-N°. C 15535 300
15535 C15535
Ø d 1 d 2 z
Code e8 h6 d 3 l 1 l 2 l 3 l 4
300 6.00 6.00 5.50 57 13.00 19.34 20.00 3 • •
391 8.00 8.00 7.40 63 19.00 25.29 26.00 3 • •
450 10.00 10.00 9.20 72 22.00 30.20 31.00 3 • •
501 12.00 12.00 11.00 83 26.00 36.13 37.00 3 • •
610 16.00 16.00 15.00 92 32.00 42.13 43.00 3 • •
682 20.00 20.00 19.00 104 38.00 52.13 53.00 3 • •

fraisa.com
577
