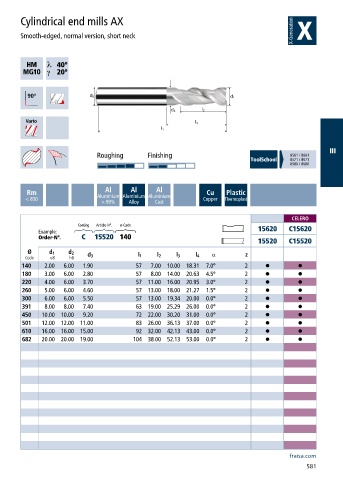

Cylindrical end mills AX

Smooth-edged, normal version, short neck

h ƍ
a ƍ

III
Roughing Finishing 8561 / 8661
8571 / 8671
8580 / 8680

Al
Al
Al
Rm Aluminium Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy Cast
CELERO
Coating Article-N°. ø-Code
Example: 15620 C15620
Order-N°. C 15520 140
15520 C15520
Ø d 1 d 2 α z
Code e8 h6 d 3 l 1 l 2 l 3 l 4
140 2.00 6.00 1.90 57 7.00 10.00 18.31 7.0° 2 • •
180 3.00 6.00 2.80 57 8.00 14.00 20.63 4.5° 2 • •
220 4.00 6.00 3.70 57 11.00 16.00 20.95 3.0° 2 • •
260 5.00 6.00 4.60 57 13.00 18.00 21.27 1.5° 2 • •
300 6.00 6.00 5.50 57 13.00 19.34 20.00 0.0° 2 • •
391 8.00 8.00 7.40 63 19.00 25.29 26.00 0.0° 2 • •
450 10.00 10.00 9.20 72 22.00 30.20 31.00 0.0° 2 • •
501 12.00 12.00 11.00 83 26.00 36.13 37.00 0.0° 2 • •
610 16.00 16.00 15.00 92 32.00 42.13 43.00 0.0° 2 • •
682 20.00 20.00 19.00 104 38.00 52.13 53.00 0.0° 2 • •
