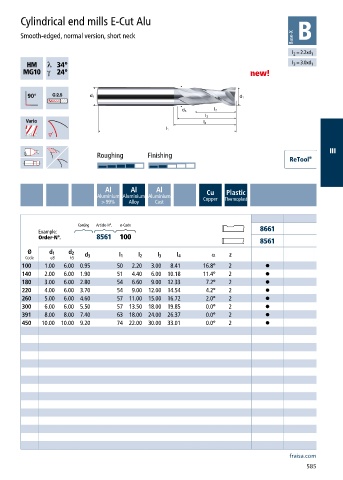

P. 587
Cylindrical end mills E-Cut Alu
Smooth-edged, normal version, short neck
l = 2.2xd 1
2
34° l = 3.0xd 1
3
24° new!
III
Roughing Finishing
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example: 8661
Order-N°. 8561 100
8561
new Ø d 1 d 2 d 3 l 1 l 2 l 3 l 4 α z
Code e8 h5
new 100 1.00 6.00 0.95 50 2.20 3.00 8.41 16.8° 2 •
new 140 2.00 6.00 1.90 51 4.40 6.00 10.18 11.4° 2 •
new 180 3.00 6.00 2.80 54 6.60 9.00 12.33 7.2° 2 •
new 220 4.00 6.00 3.70 54 9.00 12.00 14.54 4.2° 2 •
new 260 5.00 6.00 4.60 57 11.00 15.00 16.72 2.0° 2 •
new 300 6.00 6.00 5.50 57 13.50 18.00 19.85 0.0° 2 •
new 391 8.00 8.00 7.40 63 18.00 24.00 26.37 0.0° 2 •
new 450 10.00 10.00 9.20 74 22.00 30.00 33.01 0.0° 2 •
fraisa.com
585
