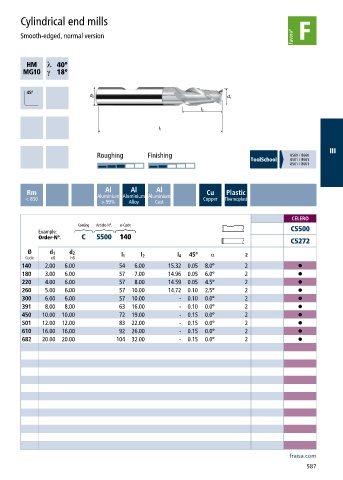

P. 589
Cylindrical end mills
Smooth-edged, normal version
h ƍ
a ƍ
III
Roughing Finishing 8560 / 8660
8561 / 8661
8561 / 8661
Al
Al
Al
Rm Aluminium Aluminium Aluminium Cu Plastic
< 850 Copper Thermoplast
> 99% Alloy Cast
CELERO
Coating Article-N°. ø-Code
Example: C5500
Order-N°. C 5500 140
C5272
Ø d 1 d 2 45° α z
Code e8 h6 l 1 l 2 l 4
140 2.00 6.00 54 6.00 15.32 0.05 8.0° 2 •
180 3.00 6.00 57 7.00 14.96 0.05 6.0° 2 •
220 4.00 6.00 57 8.00 14.59 0.05 4.5° 2 •
260 5.00 6.00 57 10.00 14.72 0.10 2.5° 2 •
300 6.00 6.00 57 10.00 - 0.10 0.0° 2 •
391 8.00 8.00 63 16.00 - 0.10 0.0° 2 •
450 10.00 10.00 72 19.00 - 0.15 0.0° 2 •
501 12.00 12.00 83 22.00 - 0.15 0.0° 2 •
610 16.00 16.00 92 26.00 - 0.15 0.0° 2 •
682 20.00 20.00 104 32.00 - 0.15 0.0° 2 •
fraisa.com
587
